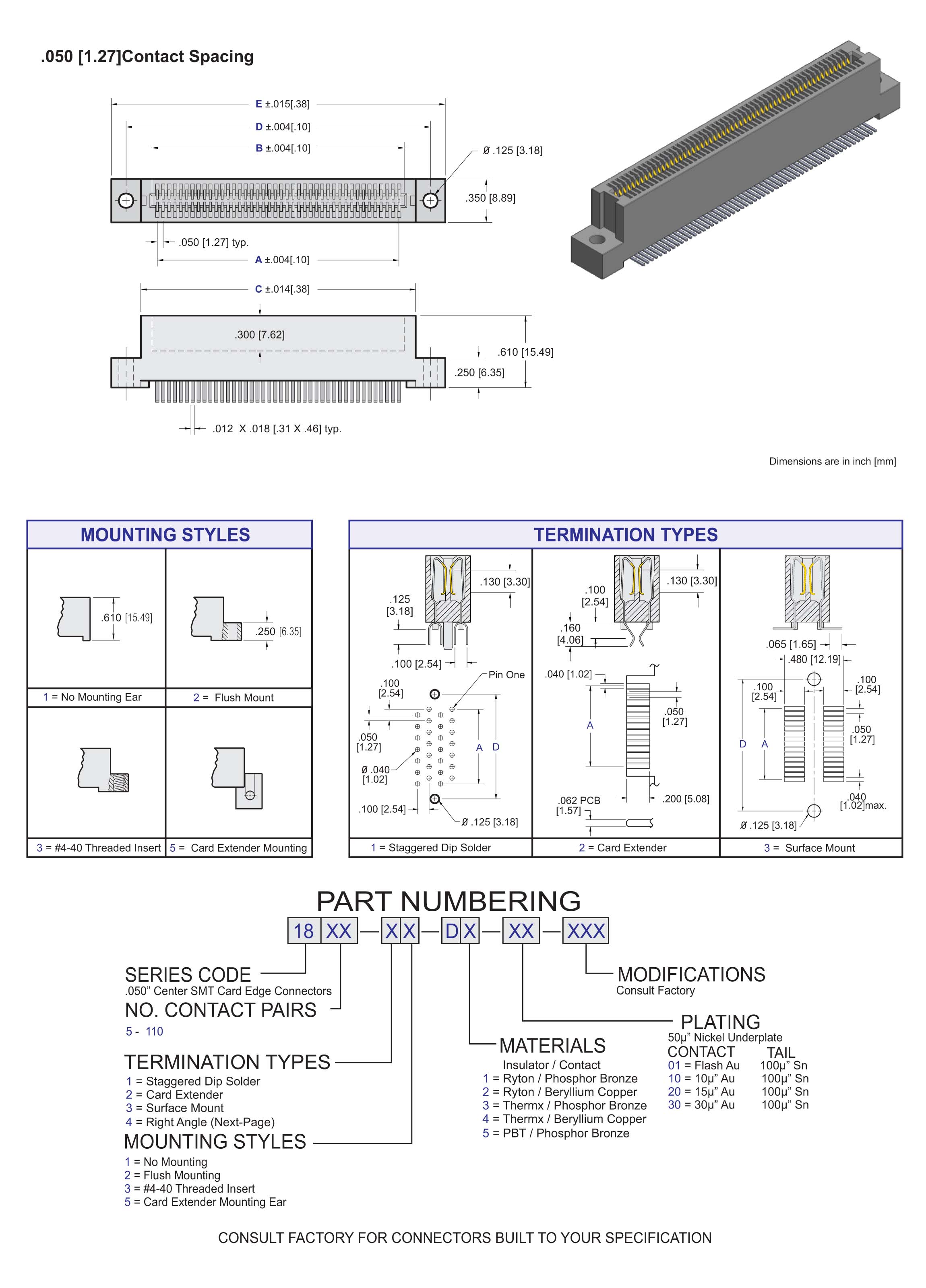

1800 Series Card Edge Connectors .050[1.27] Contact Centers




Specifications

1. Accommodates .062K.008 PC Board

2. Ryton or Thermx insulator

3. 1 amp current rating

4. Insulation Resistance: 5000 M min.

5. Dielectric Withstand Voltage: 250 V DC

6. Voltage Drop: 30 m volt at rated current

7. Contact Resistance: 30 m max. at rate current

8. Board Insertion Force: 16 oz max. per contact pair using
062 [1.58mm] thick steel test blade.

9. Board Withdrawal Force: 1 oz min. per contact pair using
.062 [1.58mm] thick steel test blade.

10. Operating Temperature: -54 C to +125 C

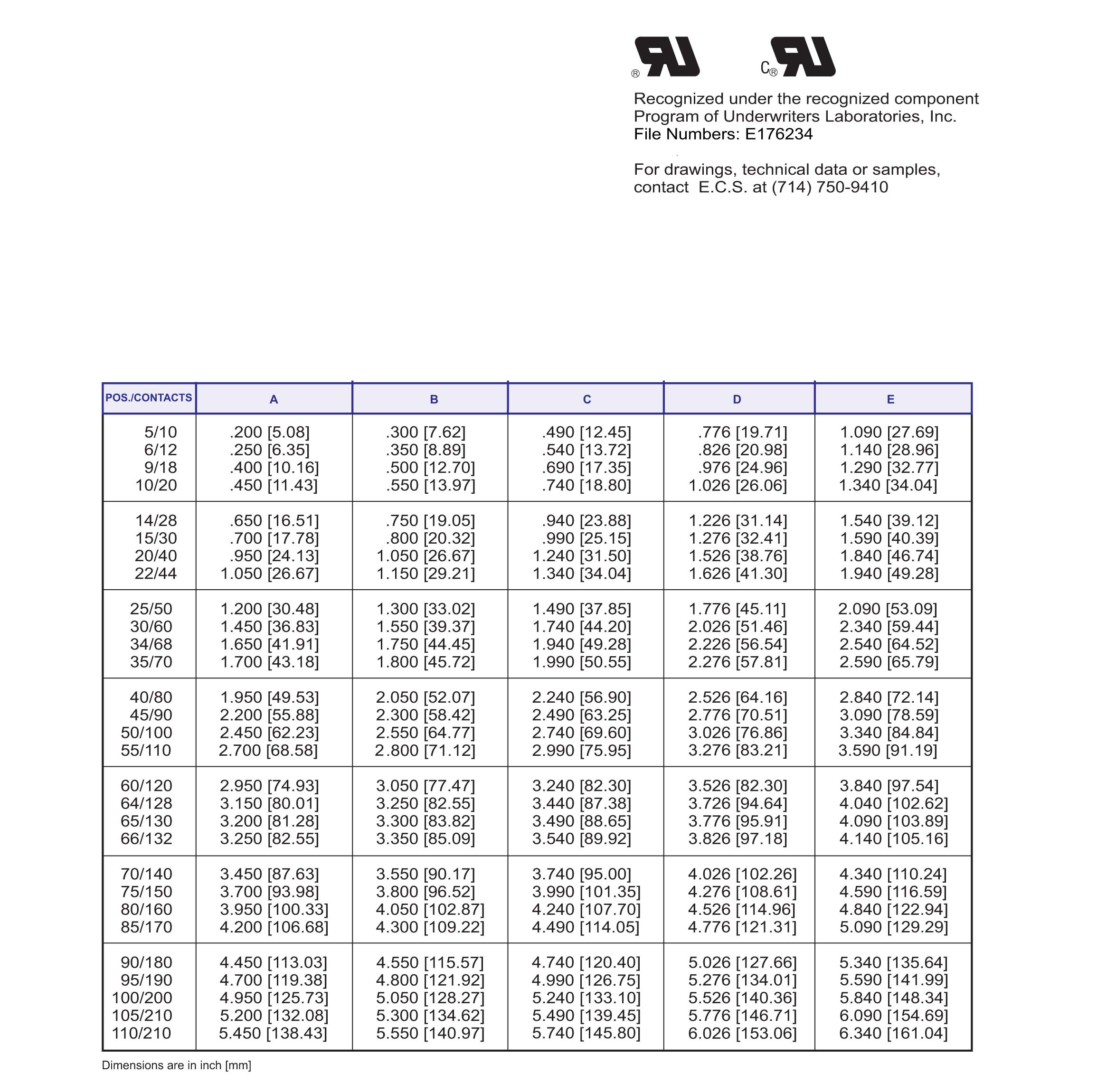

ECS 1800 Series Card Edge Connectors .050[1.27] Contact Centers



ECS 1800 Series Card Edge Connectors .050[1.27] Contact Centers
