4500 Series Card Edge Connectors .150" x .150" Contact Spacing, Press Fit



Specifications

Insulator Material: Glass filled polyester, type PBT,
94 V O, UL Rated.
Contact Material: Phosphor Bronze Alloy
Contact Plating: Gold over .000050” Nickel,
(See Contact Plating Options).
Current Rating: 5 amp at 30°C
Contact Resistance:
Contact to Daughter Card:
10 m max.
Compliant section to P.T.H.:
2 m max.
Insulation Resistance:
5000 M min.
Dielectric Withstand Voltage:
1800 V AC
Daughter Board Insertion Force:
16 oz max. per contact pair
when tested with a .071” thick
gage.
Daughter Board Withdrawal Force:
1 oz min. per contact pair
when tested with a .054” thick
gage.
Compliant Section Insertion Force:
40 lbs max per contact
Compliant Section Withdrawal Force:
10 lbs min. per contact
Recommended Board Thickness:
.093”+
Recommended PCB Layout Page A-33
-
and/or Tin
Operating Temperature:
-54 C to +125 C



ECS 1500 Series Card Edge Connectors .100" x .100" Contact Spacing, Press Fit





Features

• Flat Plate Installation eliminates the need for
secondary operation tooling which can damage
the connector.
• Extra large chamfered entry
• Conforms to Bell-core spec TR-TSY-00078
• Extended card scoops available
• Replaceable contacts
• Molded in polarization available between
contact, or on contact position.
• De-population of contacts per
customer specification.
• Available in selective gold plate at contact point
• Many other custom options available, including,
but not limited to:
• Single or Both Ends Open
• Shorting Contacts

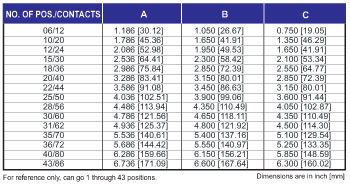

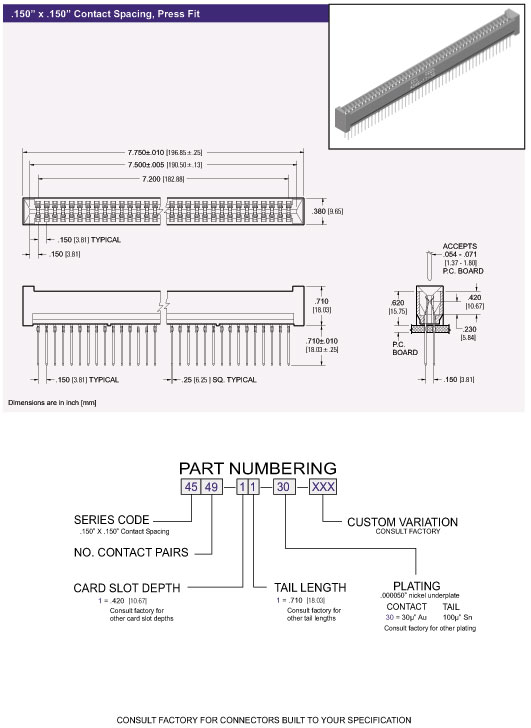

ECS 4500 Series Card Edge Connectors .150" x .150" Contact Spacing, Press Fit

ECS 4500 Series Card Edge Connectors .150" x .150" Contact Spacing, Press Fit
