E-Z met™ 2mm Hard Metric Type L Header, Straight

ECS Catalog PDF Files Download

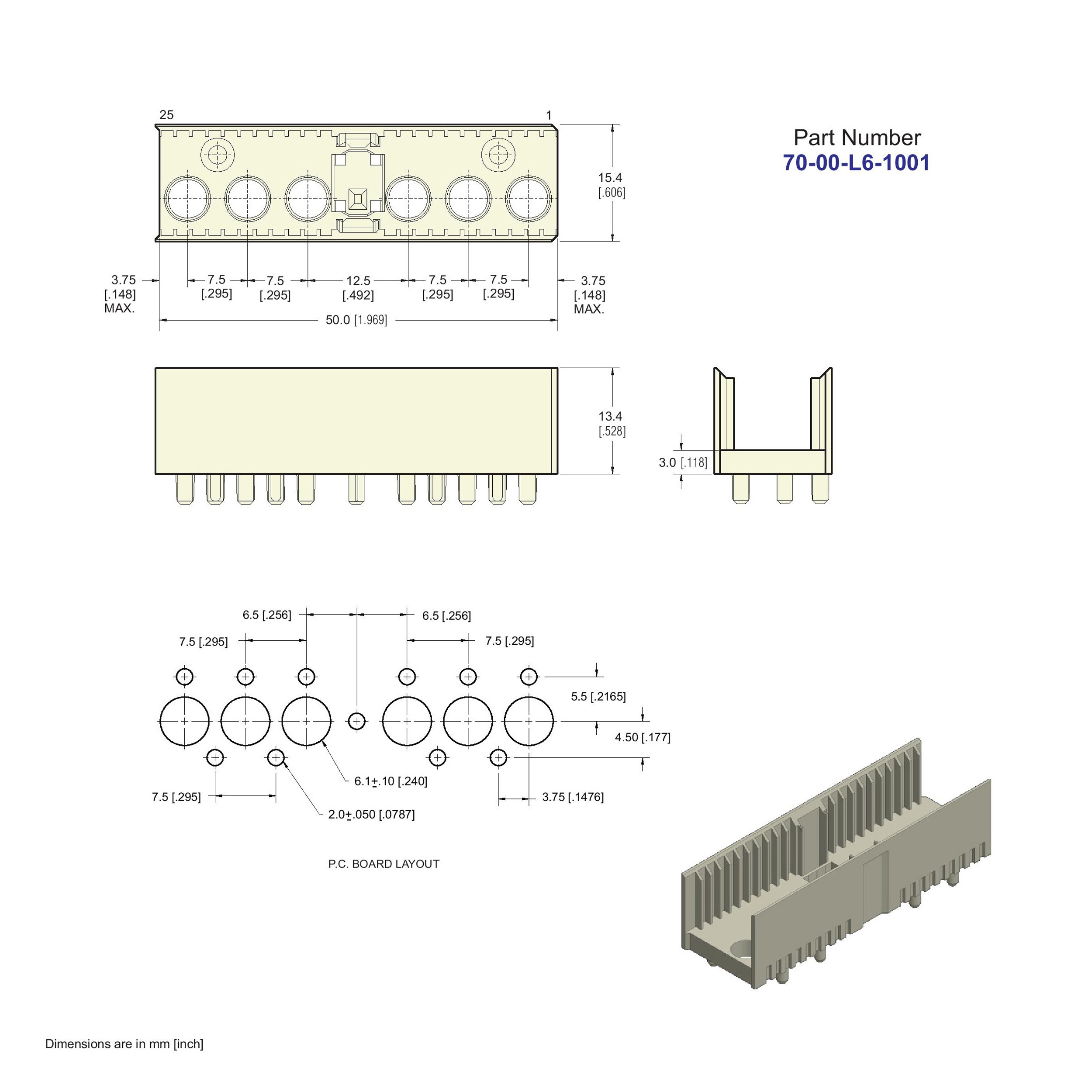

Type L, Vertical Male



The E-Z metf Type L, vertical male connector provides the user with 6 multi-purpose cavities for use with high power or coax contacts. This connector also features an additional multi-function cavity for coding. For Coaxial, High Power, and High Current Contacts, Please click link below.



Coaxial, High Power, and High Current Contacts



SPECIFICATION

1. Insulator Material: PBT 30% Glass filled UL 94 V-O

15. IEC 61076-4-101 Standard
ECS 2mm Hard Metric Type L Header Straight Connector
