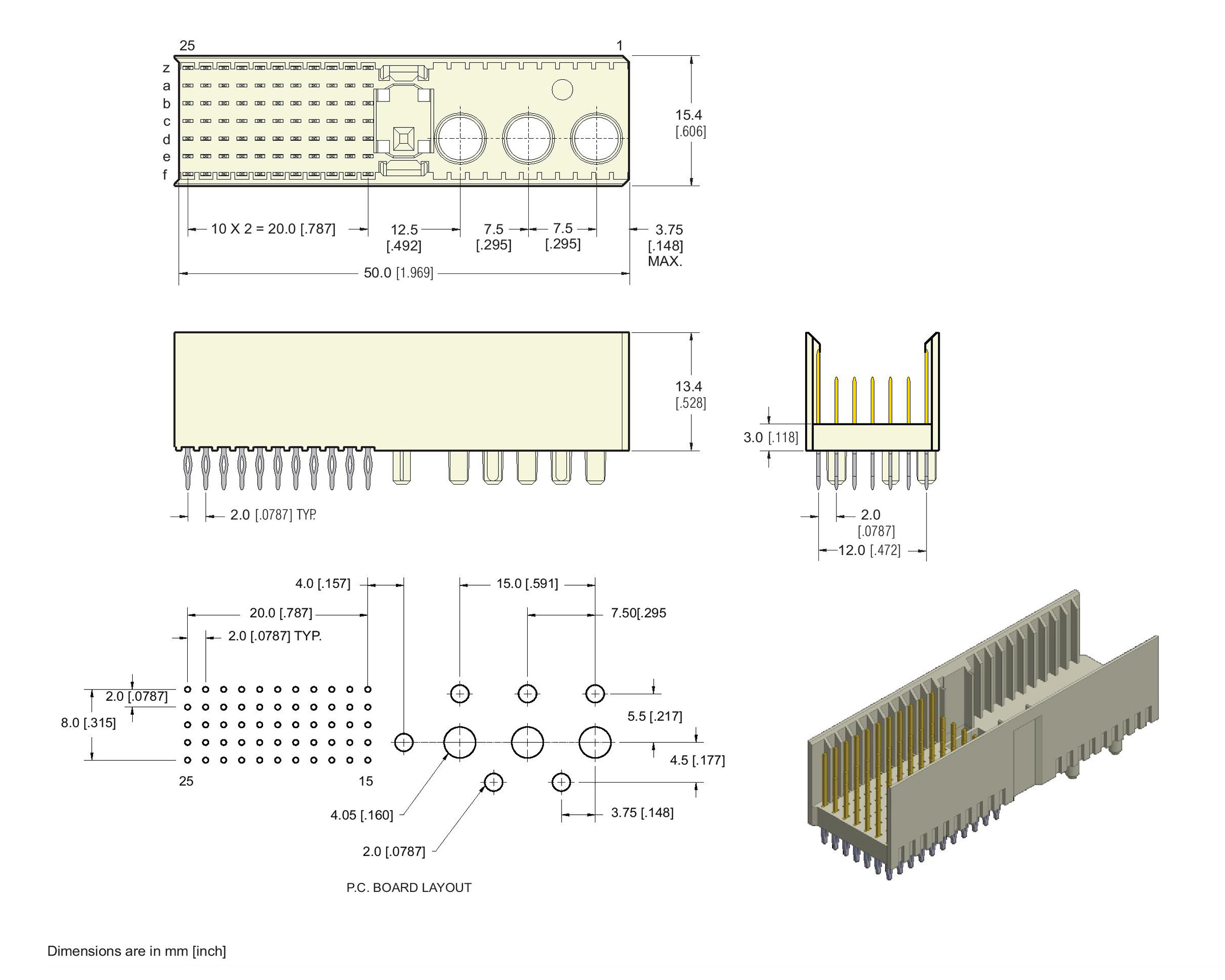

E-Z met™ 2mm Hard Metric Type M Header, Straight

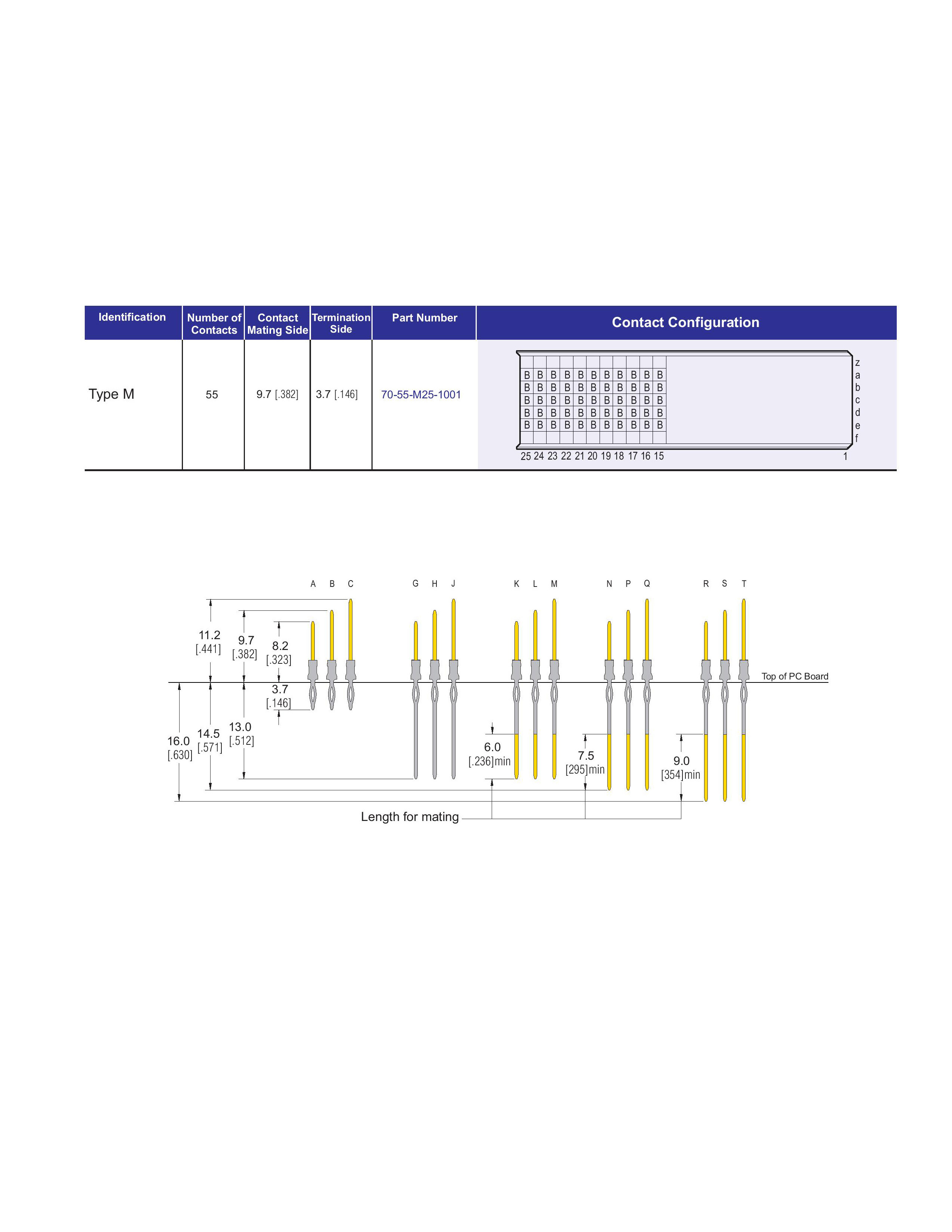

Type M, Vertical Male 77 Pin Connector



The E-Z metf type C-11 vertical male connector provides 55 signal contacts and an additional 22 ground shield contacts in a 5+2, 11 position configuration. The C-11 connector is polarized and is designed for use at the bottom end of the column of connectors on the backplane.



Coaxial, High Power, and High Current Contacts



SPECIFICATION

1. Insulator Material: PBT 30% Glass filled UL 94 V-O

2. Contact Material: Copper Alloy

3. Shield Material: Copper Alloy

4. Contact Plating:
Contact Area: Gold
Compliant Area: Matte Tin
Performance: Class 1: 500 cycles
Class 2: 250 cycles

5. Temperature Range: -55 C to +125 C

6. Contact Resistance: 20 M4 Ohm Max.

7. Insulation Resistance: 104 M Ohm Max.

8. Working Current: 1.5 ADC (Signal)

9. Test Voltage: AC 750 V Min.

10. Compliant Section:
Insertion Force: 100 N per contact Max.
Withdrawal Force: 20 N per contact Min.

11. Mating Force: .75 N per pin Max.

12. Withdrawal Force: .15 N per pin Max.

13. PCB Hole Size Requirements:
Drilled Hole Diameter: 0.7A 0.02mm
Finished Hole Diameter: 0.6A 0.05mm

14. Recommended PCB Thickness: 1.6mm Min.

15. IEC 61076-4-101 Standard
