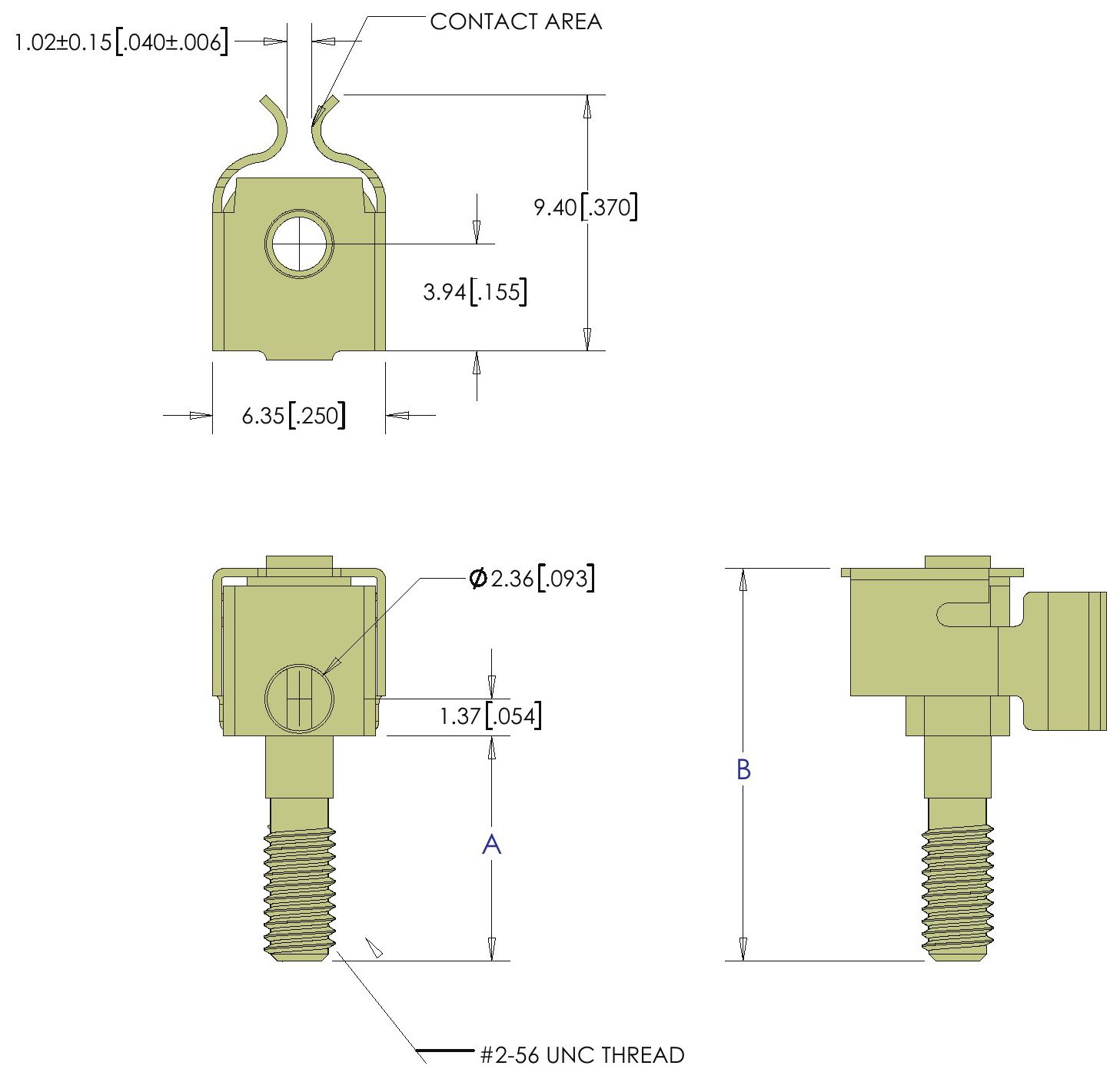

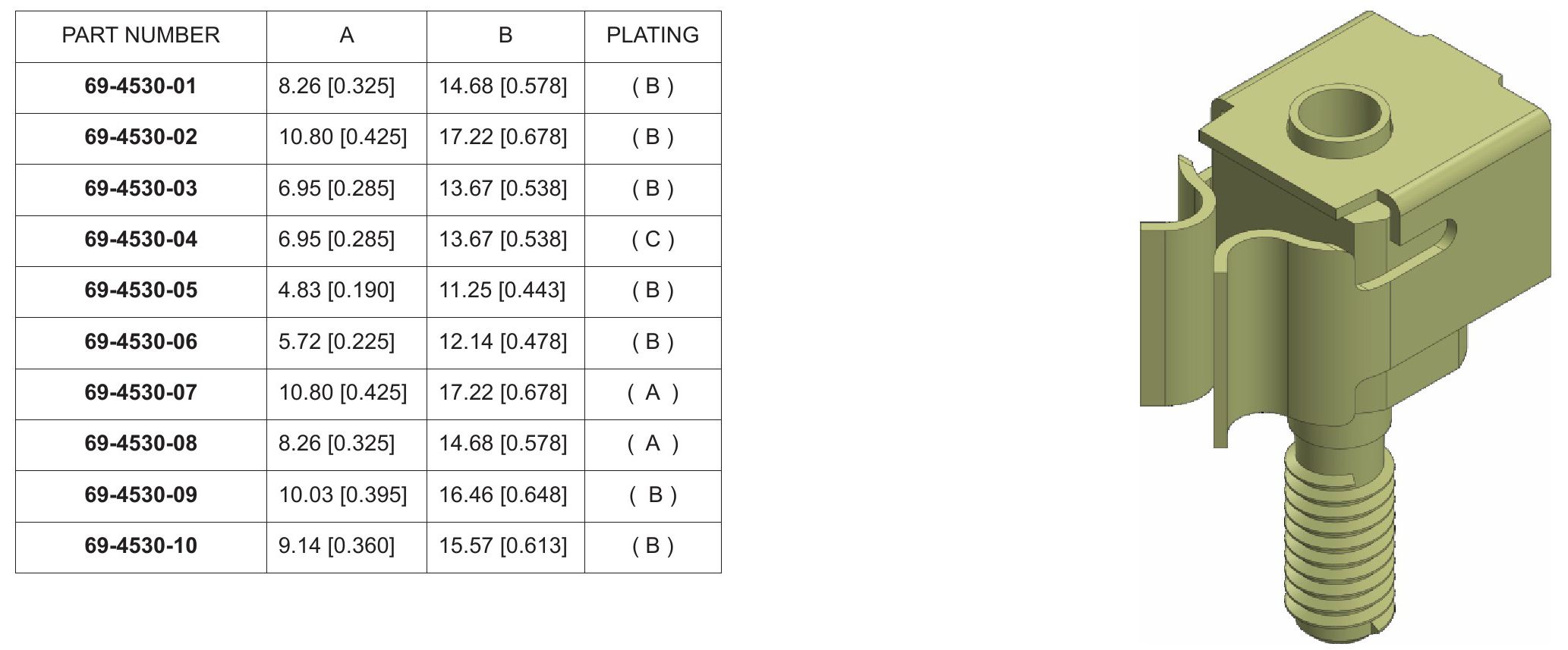

Guide Pin Power Contact End Mount




Contact Material: Phosphor Bronze
Bracket Material: Brass



(A) Plating: 100µ” Nickel underplate all over, 50µ” Gold Contact Area, Gold Flash on remainder.

(B) Plating: 100µ” Nickel underplate all over, 30µ” Gold Contact Area, Gold Flash on remainder.

(C) Plating: 100µ” Nickel underplate all over
