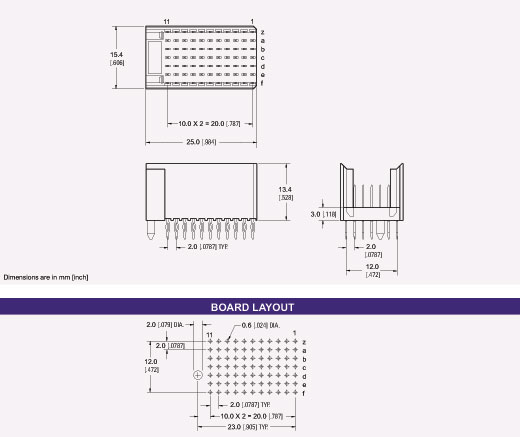

Type C-11, Vertical Male 55 Pin Connector

The type C-11 vertical male connector provides 55 signal contacts and an additional 22 ground shield contacts in a 5+2, 11 position configuration. The C-11 connector is polarized and is designed for use at the bottom end
of the column of connectors on the backplane.

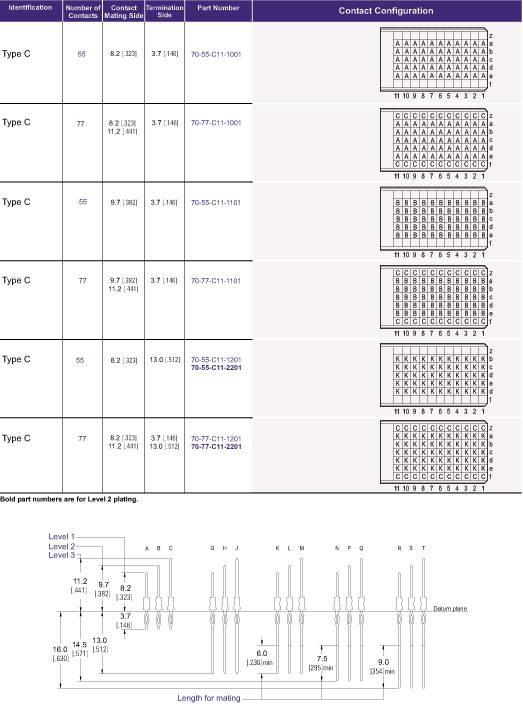

ECS offers 15 different standard tail lengths to choose from to provide various premate and midplane configurations. Contacts can be selectively loaded to accommodate customer specific applications. Custom tail lengths and mold configurations are also available. For non standard loading, or custom applications please refer to the fax
request form on page D-35.
