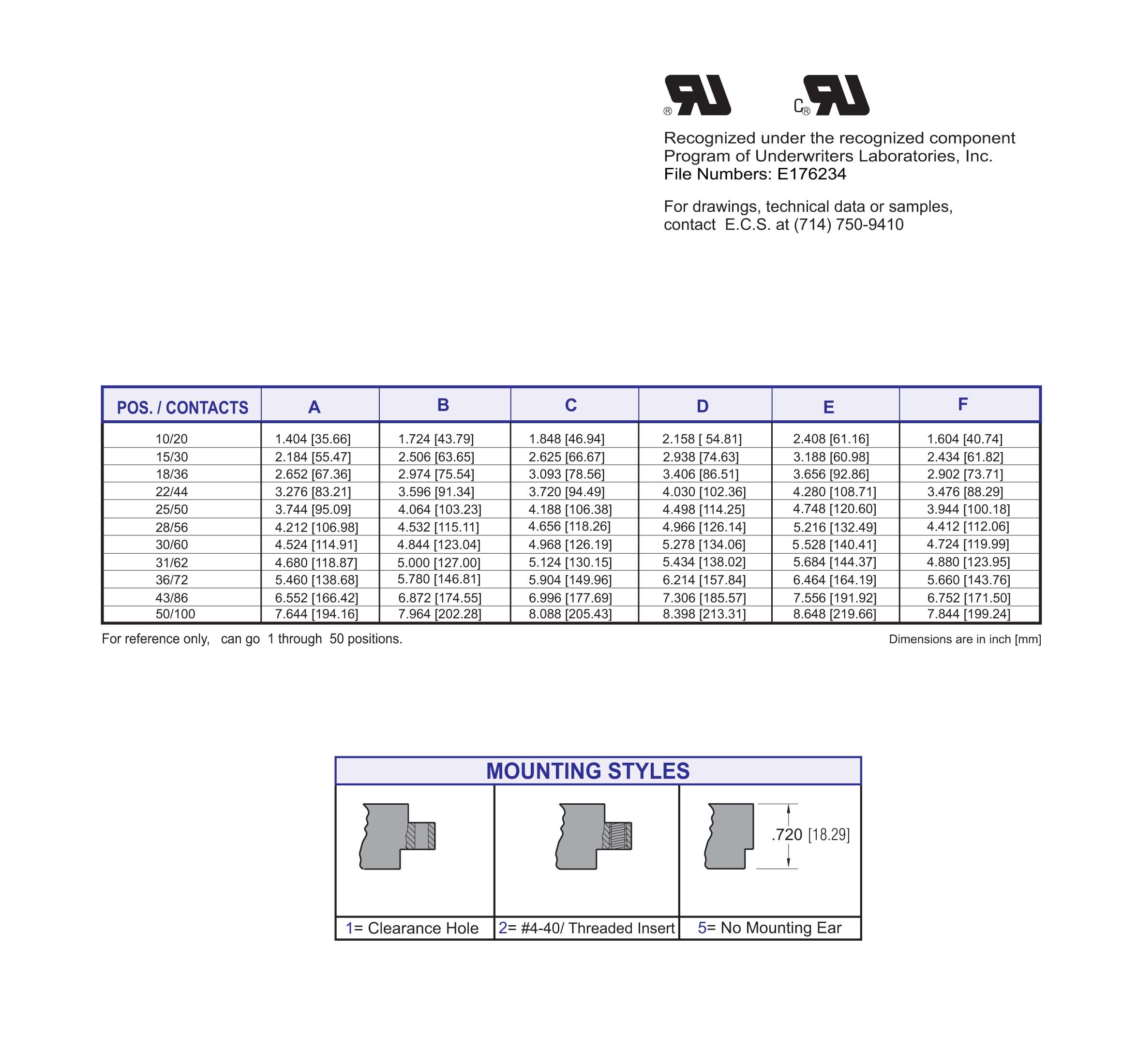

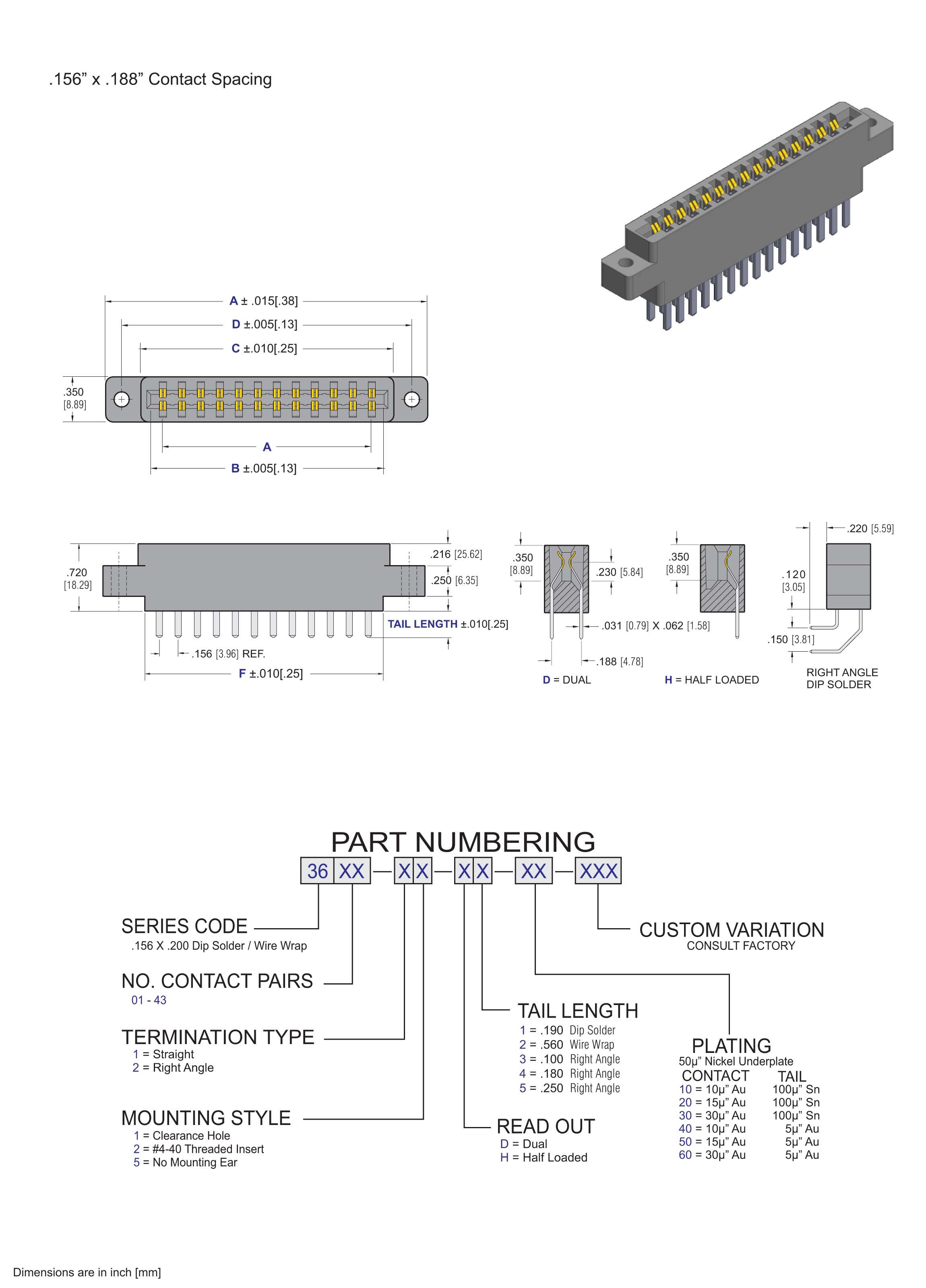

Specifications

1. Insulator Material: Glass filled polyester, type PBT, 94 V O, UL Rated.

2. Contact Material: Phosphor Bronze Alloy

3. Contact Plating: Gold and/or Tin over .000050” Nickel,
(See Contact Plating Options).

4. Current Rating: 5 amp at 30°C

5. Contact Resistance:

Contact to Daughter Card: 10 m max.

6. Insulation Resistance: 5000 M min.

7. Dielectric Withstand Voltage: 1800 V AC

8. Daughter Board Insertion Force:
16 oz max. per contact pair
when tested with a .071” thick gage.

9. Daughter Board Withdrawal Force:
1 oz min. per contact pair
when tested with a .054” thick gage.

13. Operating Temperature: -54 C to +125 C



Features

• Extra large chamfered entry
• Conforms to Bell-core spec TR-TSY-00078
• Extended card scoops available
• Replaceable contacts
• Molded in polarization available between contact, or on contact position.
• De-population of contacts per customer specification.
• Available in selective gold plate at contact point
• Many other custom options available, including, but not limited to:
  • Single or Both Ends Open
  • Shorting Contacts
