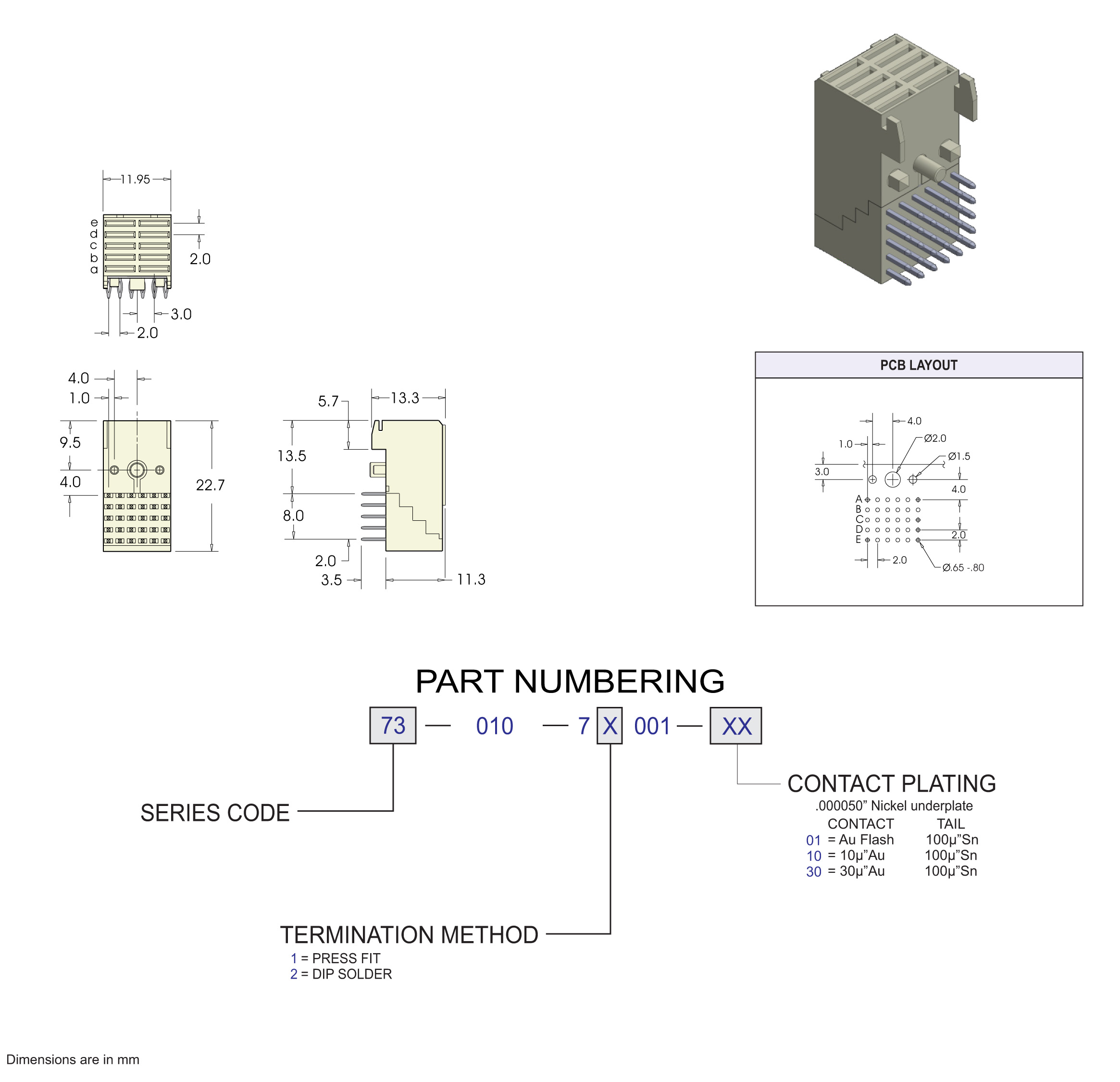

2.0mm FutureBus 5 Row Female Power Right Angle




Specifications

1. Insulator Material: Liquid Crystal Polymer (LCP) 94V-O, UL Recognized.

2. Contact Material: Phosphor Bronze or Brass

3. Contact Plating: Gold and/or Tin over Nickel (see contact plating options)

4. Compliant Insertion Force: 22.1 lbs max. per contact

5. Compliant Withdrawal Force: 4.4 lbs min. per contact

6. Insulation Resistance: 1000 M ohms min. @ 500v

7. Contact Resistance: 30 m ohms max. @ DC 100mA

8. Dielectric Withstand Voltage: 1000 VAC for 1 min.

9. Current Rating: 3 Amp @ 20°C per contact

10. Operating Temperature: -55°C To +125°C

11. UL File Numbers: E 176234, IEEE 896.10 FutureBus+



ECS 2mm 7300 Series 4 Row Right Angle Female Power Futurebus Connector
