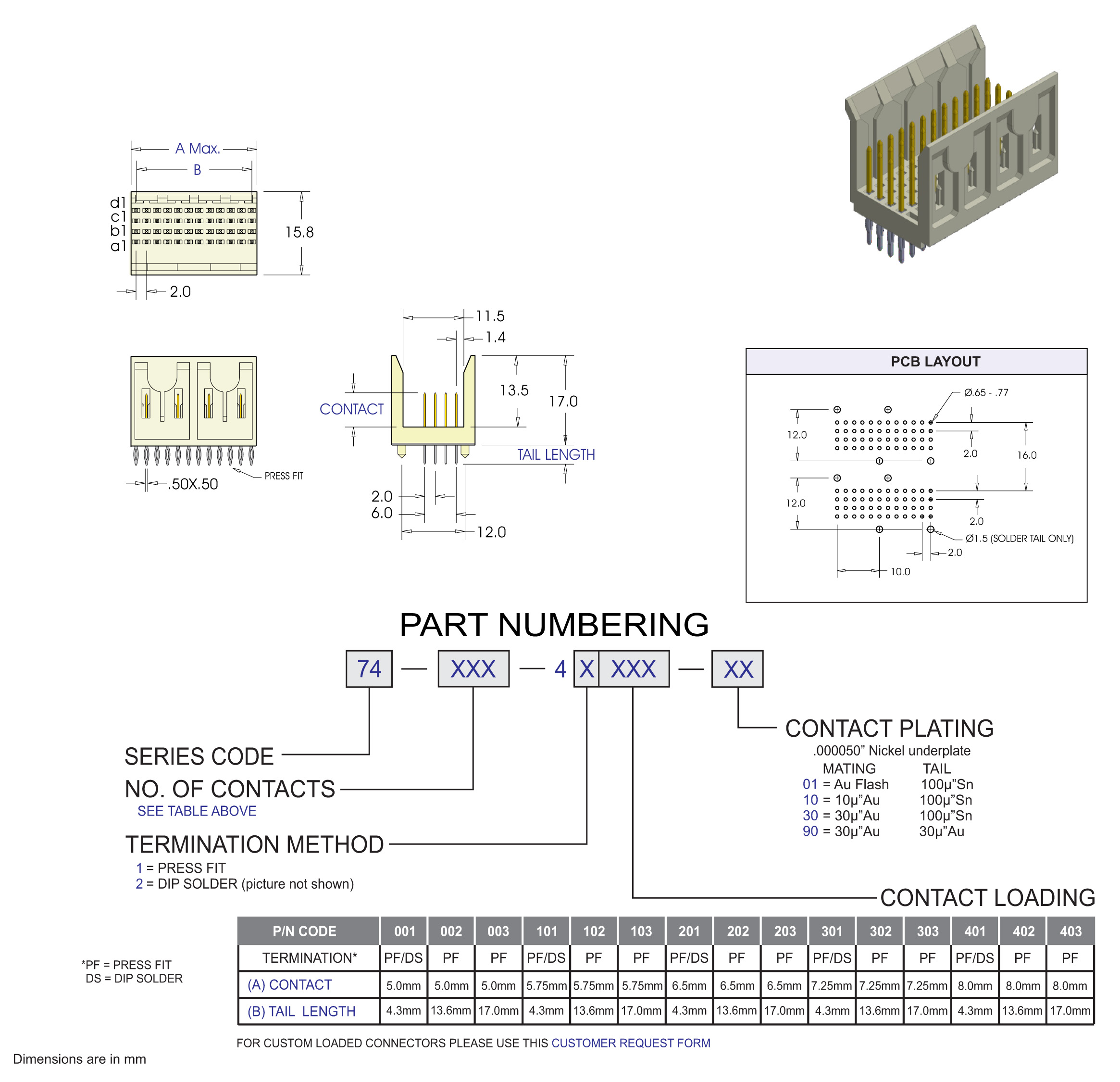

| Contact | Dim A | Dim B |
|---|---|---|
| 24 | 11.95 | 10.00 |
| 48 | 23.95 | 22.00 |
| 72 | 35.95 | 34.00 |
| 96 | 47.95 | 46.00 |
| 120 | 59.95 | 58.00 |
| 144 | 71.95 | 70.00 |
| 168 | 83.95 | 82.00 |
| 192 | 95.95 | 94.00 |
Specifications
1. Insulator Material: Liquid Crystal Polymer (LCP) 94V-O, UL Recognized.
2. Contact Material: Phosphor Bronze or Brass
3. Contact Plating: Gold and/or Tin over Nickel (see contact plating options)
4. Compliant Insertion Force: 22.1 lbs max. per contact
5. Compliant Withdrawal Force: 4.4 lbs min. per contact
6. Insulation Resistance: 1000 M ohms min. @ 500v
7. Contact Resistance: 30 m ohms max. @ DC 100mA
8. Dielectric Withstand Voltage: 1000 VAC for 1 min.
9. Current Rating: 1 Amp @ 20°C per contact
10. Operating Temperature: -55°C To +125°C
11. UL File Numbers: E 176234, IEEE 896.10 FutureBus+
