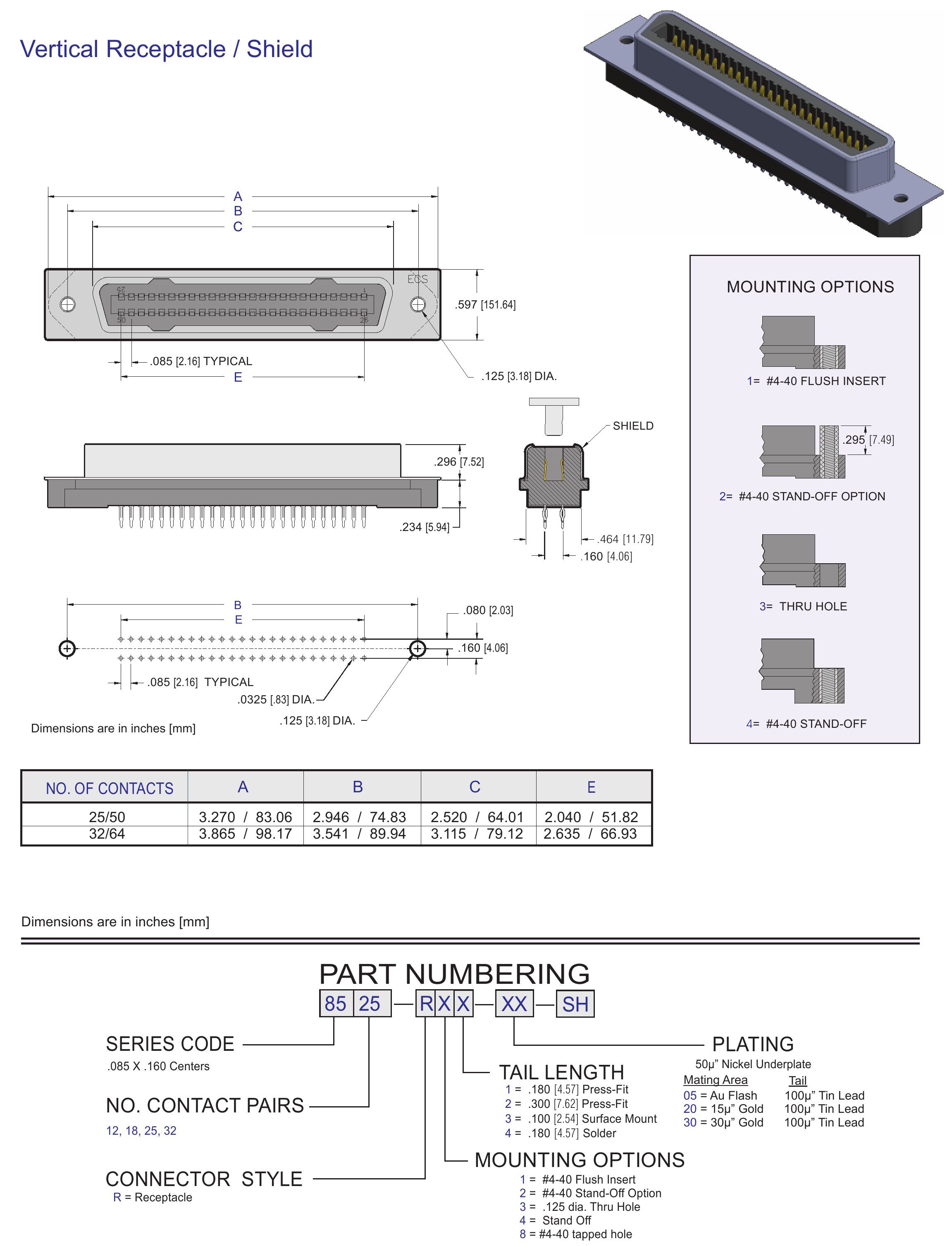

Receptacle Vertical Shield






Specifications

Insulator Material: Glass filled polyester, type PBT , 94-VO, UL Recognized.

Contact Material: Phosphor Bronze Alloy CA510

Contact Plating: Gold over 50µ” Nickel, and Tin Lead (See part numbering for thicknesses).

Current Rating: 3 amp at 30°C

Contact Resistance: Contact to Daughter Card: 10m ohms ,
Compliant section to P.T.H.: 2m ohms

Insulation Resistance: 5000M ohms

Dielectric Withstand Voltage: 1000 V AC

Compliant Section Insertion Force: 40 lbs max per contact

Compliant Section Withdrawal Force: 10 lbs min per contact

Hole Size Requirements:Drilled Hole Dia.: .0378± .001
Plating: .001 to .003 copper and
.0003 min Tin.

Finished Hole Diameter: .032 - .035

Recommended Board Thickness: .093 to .125



Features

• Flat Plate Installation to eliminate the need for secondary operation tooling which can
damage the connector when installed into motherboard.

• Available with through-hole 4-40 insert or 4-40 stand-off mounting hardware.

• Available in selective gold plate at contact point

• Many other custom options available, consult factory
