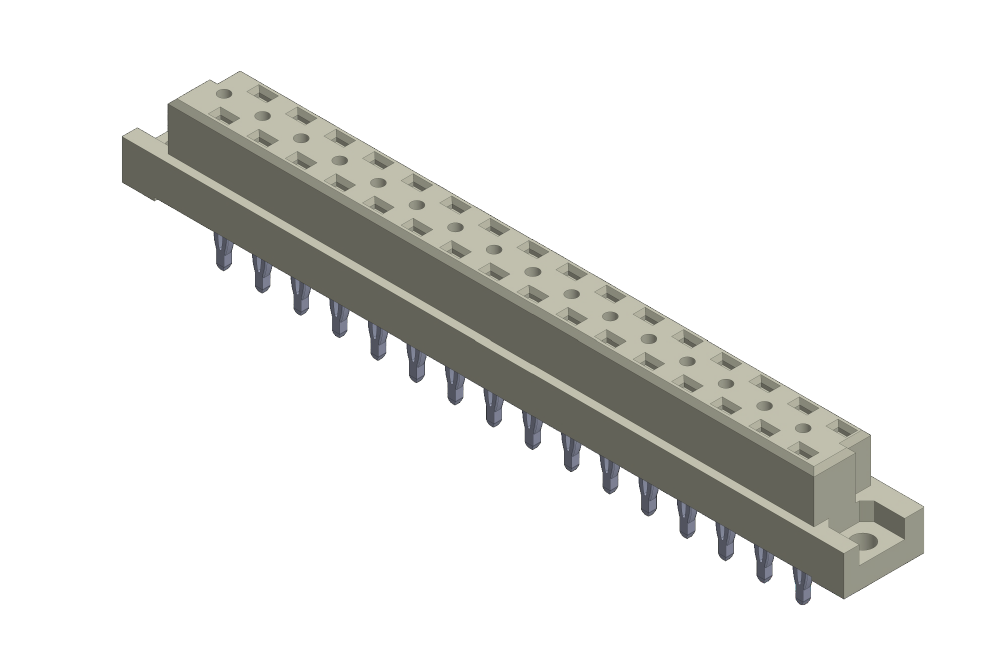

DIN 41612 Type D Female Vertical

ECS Catalog PDF Files Download

Specifications

  1. Insulator Material: Thermoplastic, 94 V-O, UL Rated, color natural<br>
  2. Contact Material: Copper Alloy<br>
  3. Contact Plating: see part number system below<br>
  4. Current Rating: Ambient temp.= 20BC @ 5.5A, 70BC @ 4.0A, 100BC @ 2.5A<br>
  5. Contact Resistance: &amp;lt; 15 mΩ<br>
  6. Insulation Resistance: &amp;gt; 106 MΩ<br>
  7. Dielectric Strength: 1550V rms<br>
  8. Operating Temperature: -55BC to +125BC<br>
  9. IEC 60603-2 Connector
