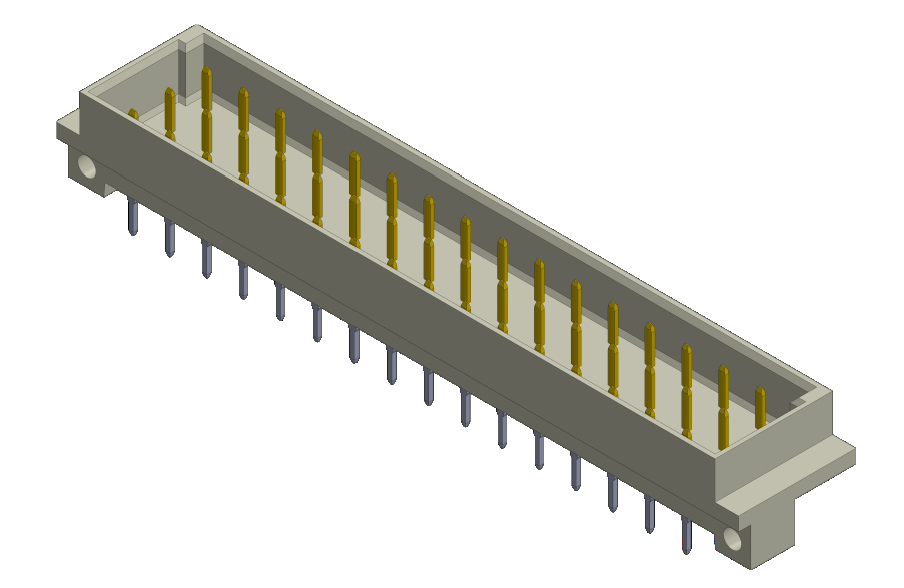

DIN 41612 Type E Male Vertical


ECS Catalog PDF Files Download

Specifications

  1. Insulator Material: Thermoplastic, 94 V-O, UL Rated, color natural
  2. Contact Material: Copper Alloy
  3. Contact Plating: see part number system below
  4. Current Rating: Ambient temp.= 20BC @ 5.5A, 70BC @ 4.0A, 100BC @ 2.5A
  5. Contact Resistance: < 15 mΩ
  6. Insulation Resistance: > 106 MΩ
  7. Dielectric Strength: 1550V rms
  8. Operating Temperature: -55BC to +125BC
  9. IEC 60603-2 Connector
