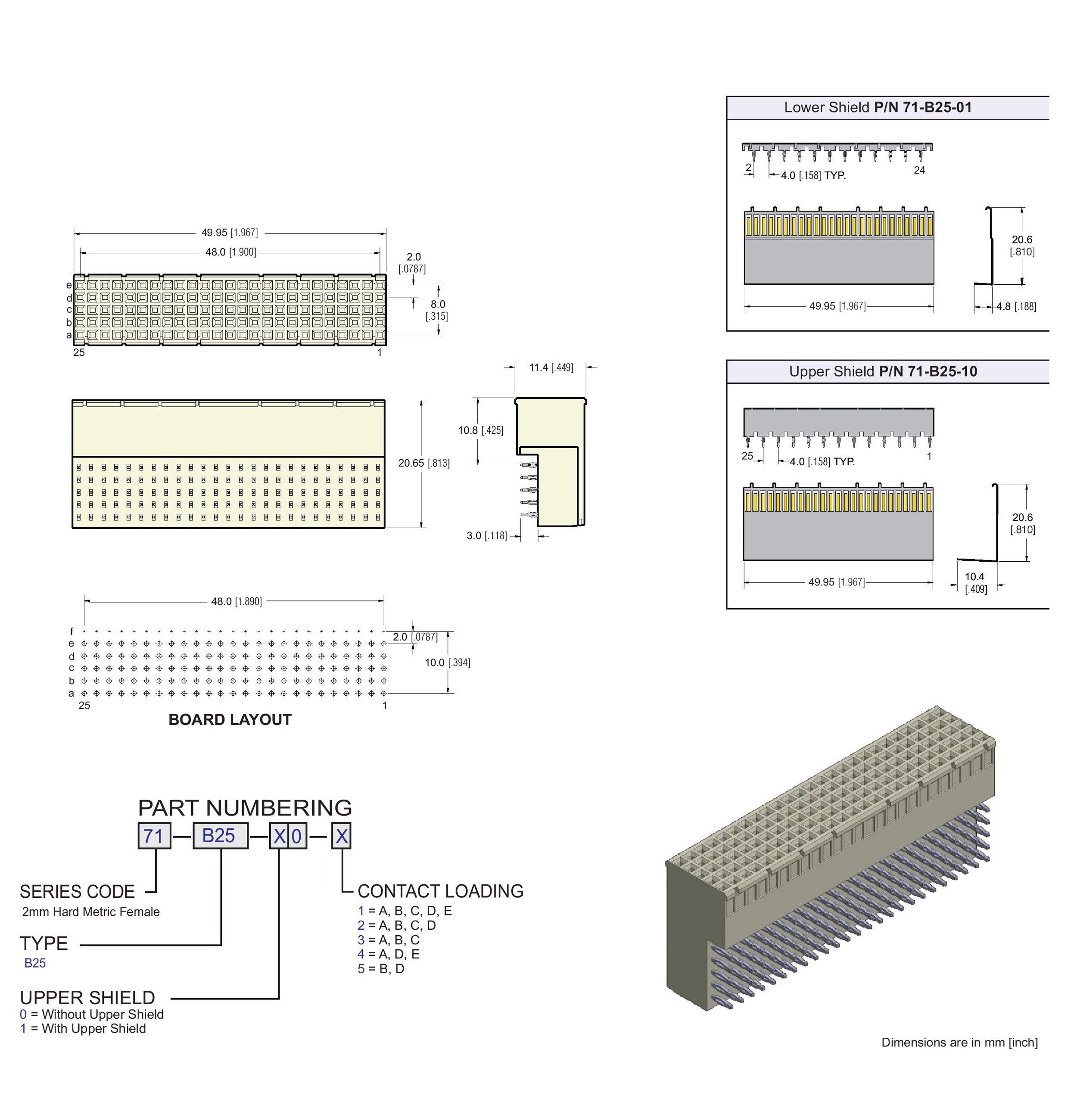

The E-Z met Type B-25 female connector provides 125 contacts. These connectors are available either with or without integrated upper ground return shields. Lower ground return shields may be ordered separately.
The Type B-25 connector is not designed to be used alone, but may be used together with either a Type A, C, L, M or N E-Z met connector.
1. Insulator Material: PBT 30% Glass filled UL 94 V-O
2. Contact Material: Copper Alloy
3. Shield Material: Copper Alloy
4. Contact Plating:
Contact Area: Gold
Compliant Area: Matte Tin
Performance: Class 1: 500 cycles
Class 2: 250 cycles
5. Temperature Range: -55 C to +125 C
6. Contact Resistance: 20 M4 Ohm Max.
7. Insulation Resistance: 10 M Ohm Max.
8. Working Current: 1.5 ADC (Signal)
9. Test Voltage: AC 750 V Min.
10. Compliant Section:
Insertion Force: 100 N per contact Max.
Withdrawal Force: 20 N per contact Min.
11. Mating Force: .75 N per pin Max.
12. Withdrawal Force: .15 N per pin Max.
13. PCB Hole Size Requirements:
Drilled Hole Diameter: 0.7A 0.02mm
Finished Hole Diameter: 0.6A 0.05mm
14. Recommended PCB Thickness: 1.6mm Min.
15. IEC 61076-4-101 Standard
If you have a question about our products, would like a sample P/N or need a quote, please feel free to contact us and one of our representative will get back to your as soon as possible.
