E-Z met™ 2mm Hard Metric Type L Receptacle, Right Angle

ECS Catalog PDF Files Download





The E-Z metf type L daughtercard connector provides six special cavities designed for use with power or coaxial contacts. This connector also features a multifunction cavity for coding and pre alignment guides to prevent improper mating. The Type L connector can be used by itself or in combination with any Type A, B, C, M or N E-Z metf connector. For Coaxial, High Power, and High Current Contacts, Please click link below.



Coaxial, High Power, and High Current Contacts



SPECIFICATION

1. Insulator Material: PBT 30% Glass filled UL 94 V-O

15. IEC 61076-4-101 Standard

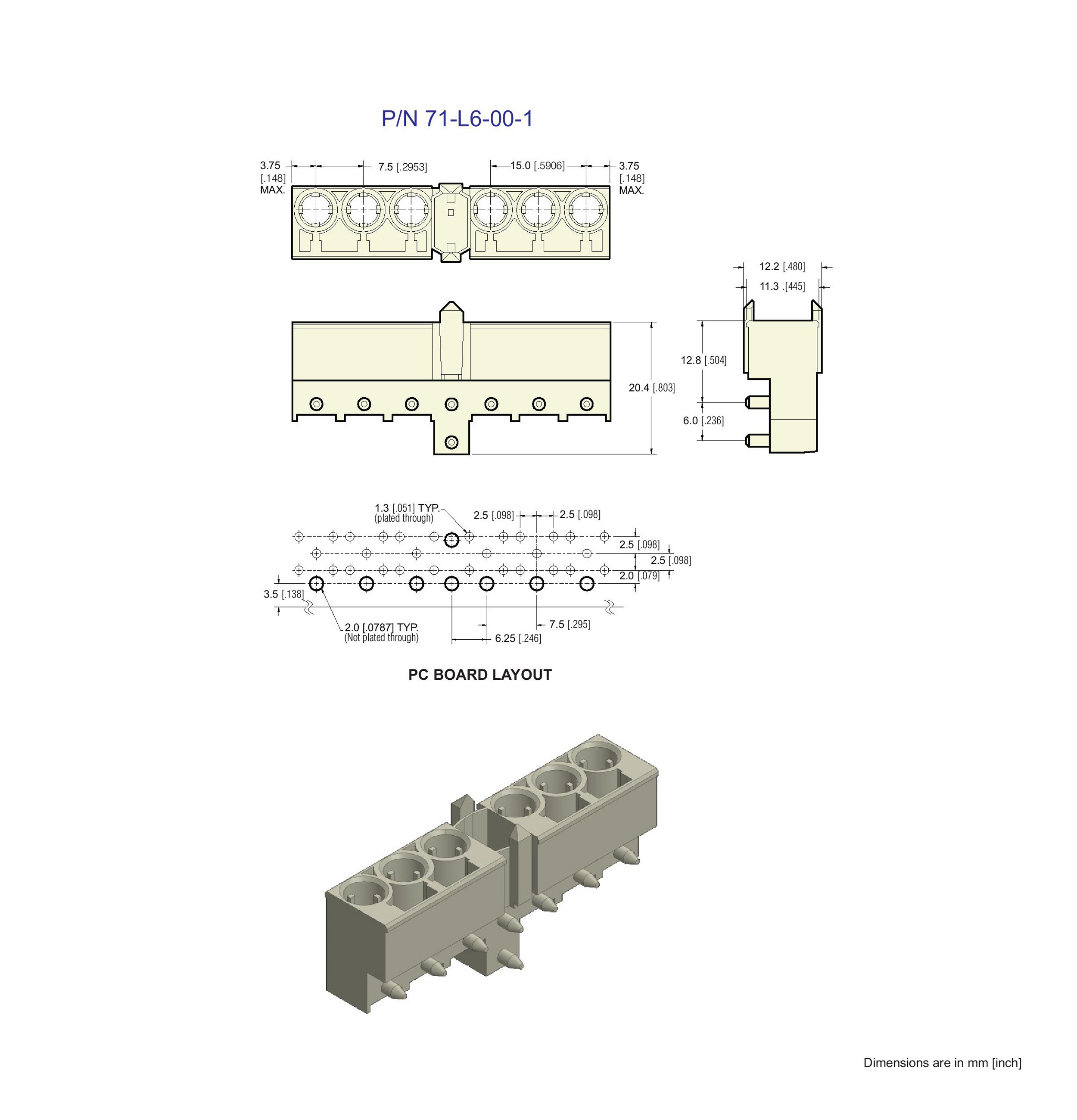

ECS 2mm Hard Metric Type L Receptacle Right Angle Connector
ECS Catalog Download PDF Files
