4 Row HDI Female Vertical 3 Bay






Specifications

Insulator Material: Thermoplastic , color natural (brown) , 94 V-O, UL Rated.

Contact Material: Beryllium Coppper

Contact Plating: Gold and/or Tin over .000050” Nickel, (See Contact Plating Options).

Current Range at +20C = 3 amp

Ambient Temp. Of +70C = 2 amp
+100C = 1 amp

Contact Resistance: <=20m Ω

Insulation Resistance: >=1012m Ωat 100 VDC

Dielectric Strength: <=1000 VDC

Compliant Section Insertion Force: 40 lbs max per contact

Compliant Section Withdrawal Force: 10 lbs min. per contact

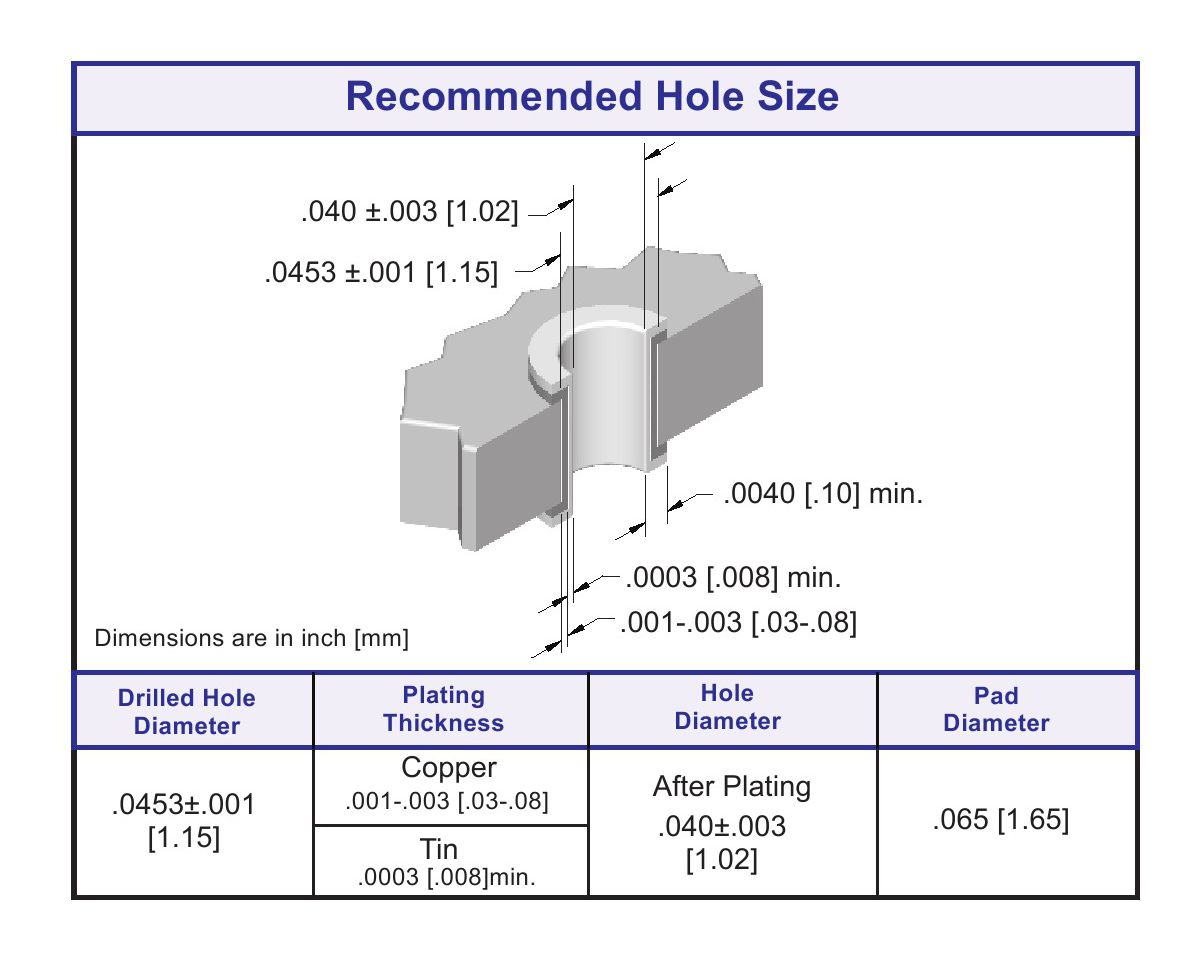

Recommended Board Thickness: .093”+

Operating Temperature: -65° C to +125C

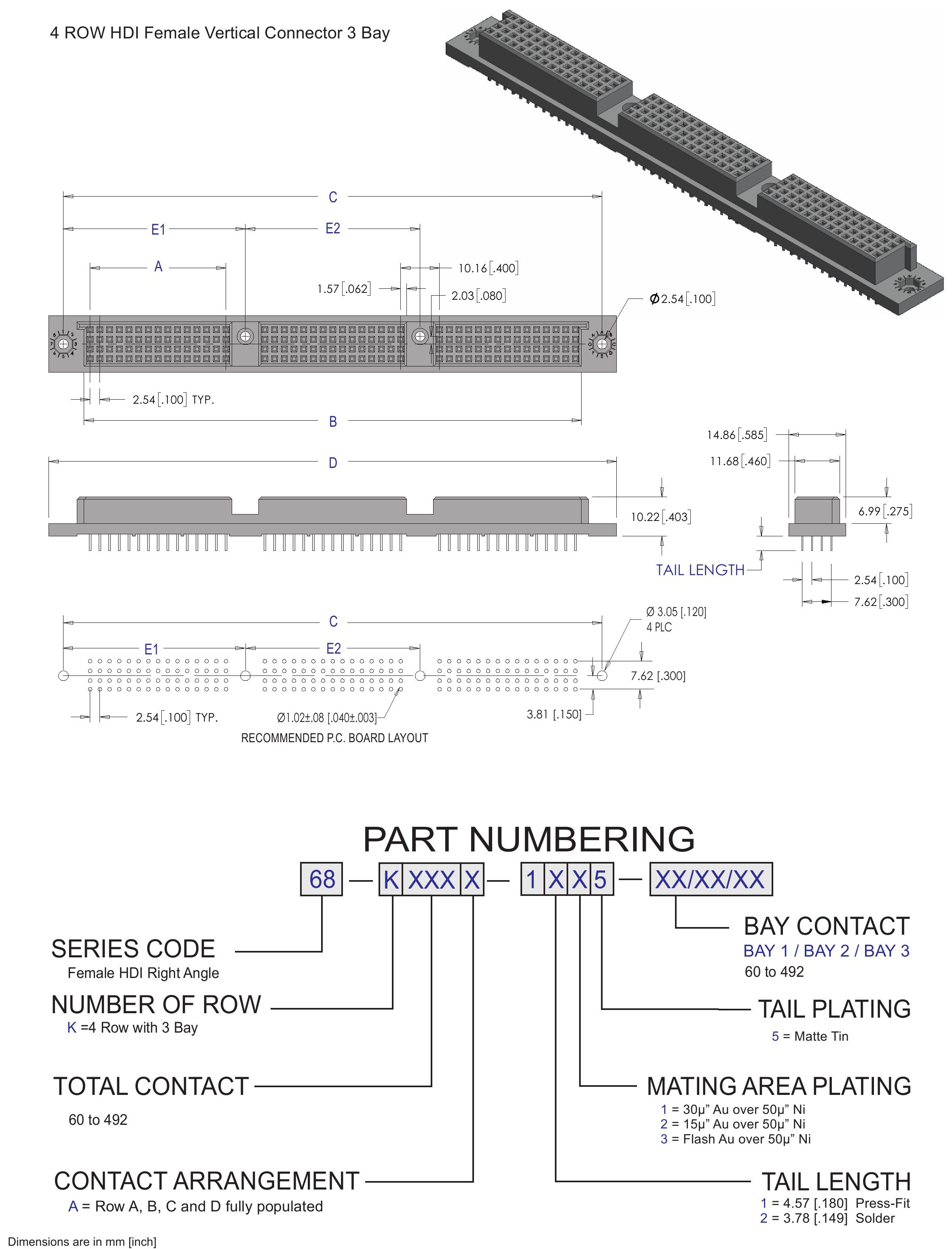

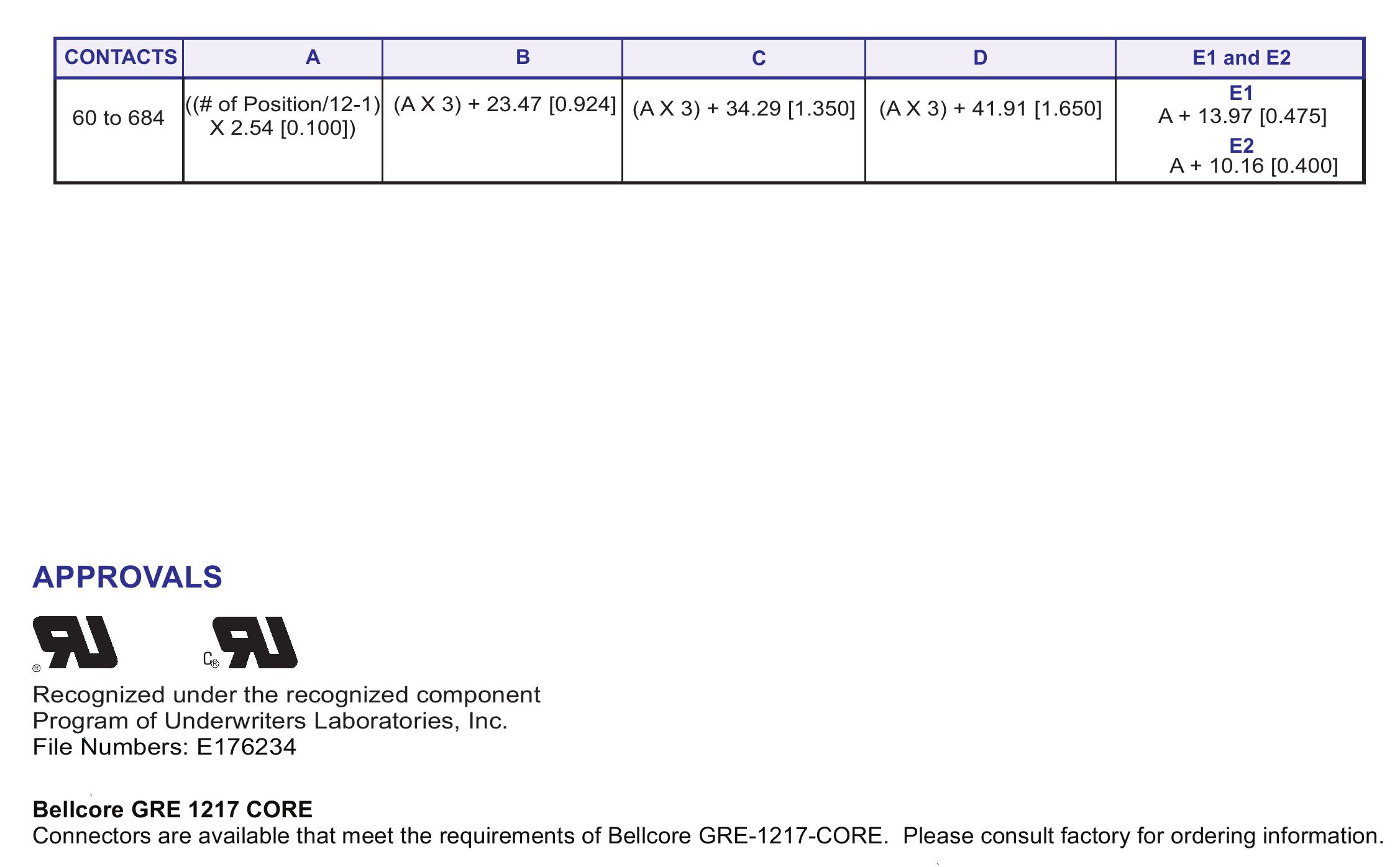

ECS 4 Row HDI Female Vertical 3 Bay Connector
