Insulator Material: Thermoplastic , color natural (brown) , 94 V-O, UL Rated.
Contact Material: Beryllium Coppper
Contact Plating: Gold and/or Tin over .000050” Nickel, (See Contact Plating Options).
Current Range at +20C = 3 amp
Ambient Temp. Of +70C = 2 amp
+100C = 1 amp
Contact Resistance: <=20m Ω
Insulation Resistance: >=1012m Ωat 100 VDC
Dielectric Strength: <=1000 VDC
Compliant Section Insertion Force: 40 lbs max per contact
Compliant Section Withdrawal Force: 10 lbs min. per contact

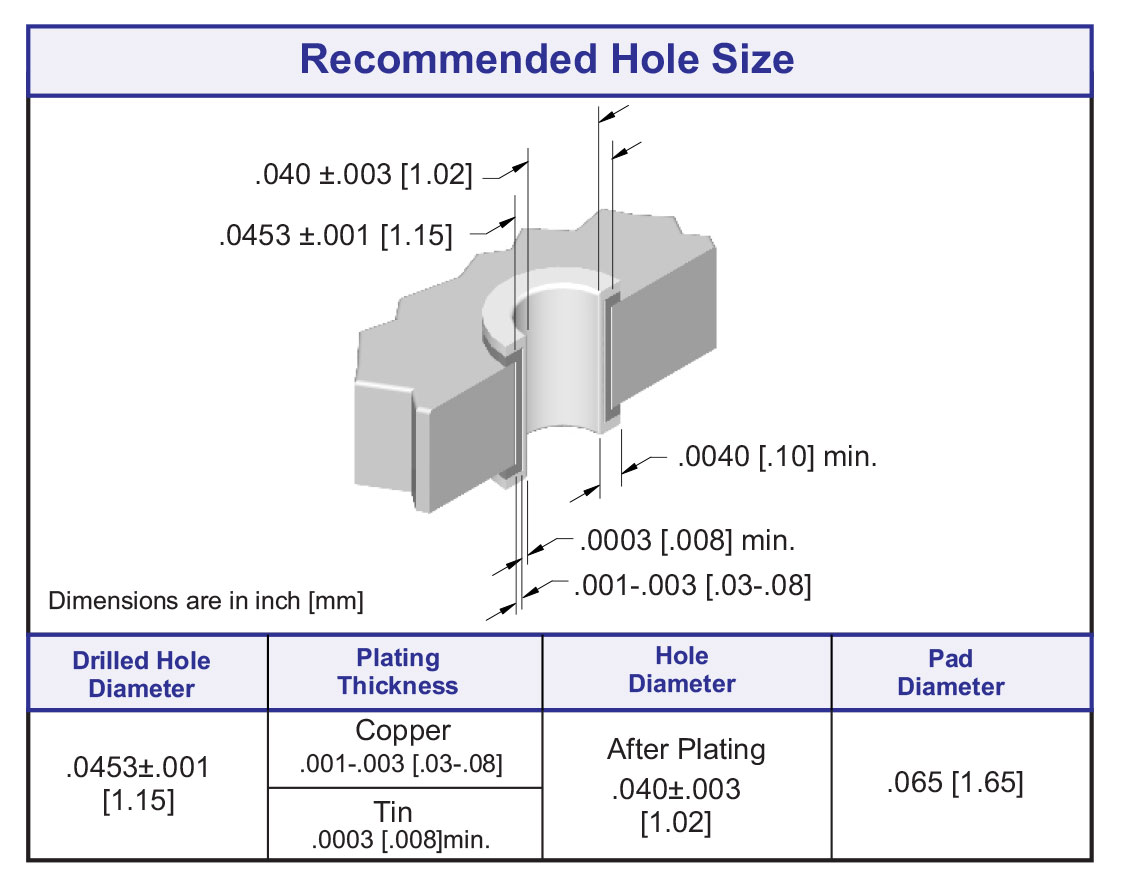

Recommended Board Thickness: .093”+
Operating Temperature: -65° C to +125C
