  3. 4 Row HDI Male Right Angle

4 Row HDI Male Right Angle

ECS Catalog PDF Files Download

Specifications

  1. Insulator Material: Glass filled polyester, type PBT, 94 V-O, UL Rated.
  2. Contact Material: Copper Alloy
  3. Contact Plating: Gold and/or Tin over .000050” Nickel,(See Contact Plating Options).
  4. Current Range at +20C = 3 amp
  5. Ambient Temp. Of +70C = 2 amp
    +100C = 1 amp
  6. Contact Resistance: <=20m Ω
  7. Insulation Resistance: >=1012m Ωat 100 VDC
  8. Dielectric Strength: <=1000 VDC
  9. Compliant Section Insertion Force: 40 lbs max per contact
  10. Compliant Section Withdrawal Force: 10 lbs min. per contact

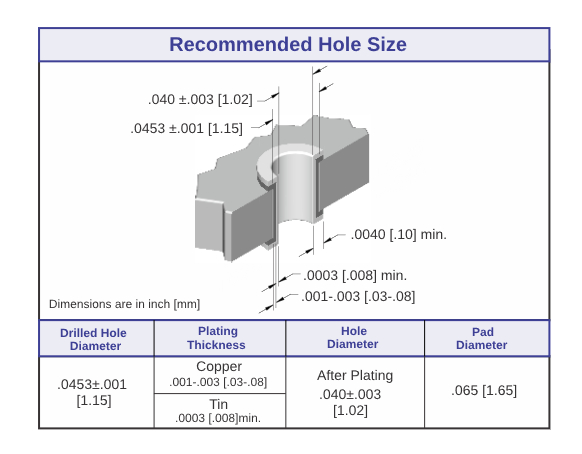

  11. Recommended Board Thickness: .093”+
  12. Operating Temperature: -65° C to +125C

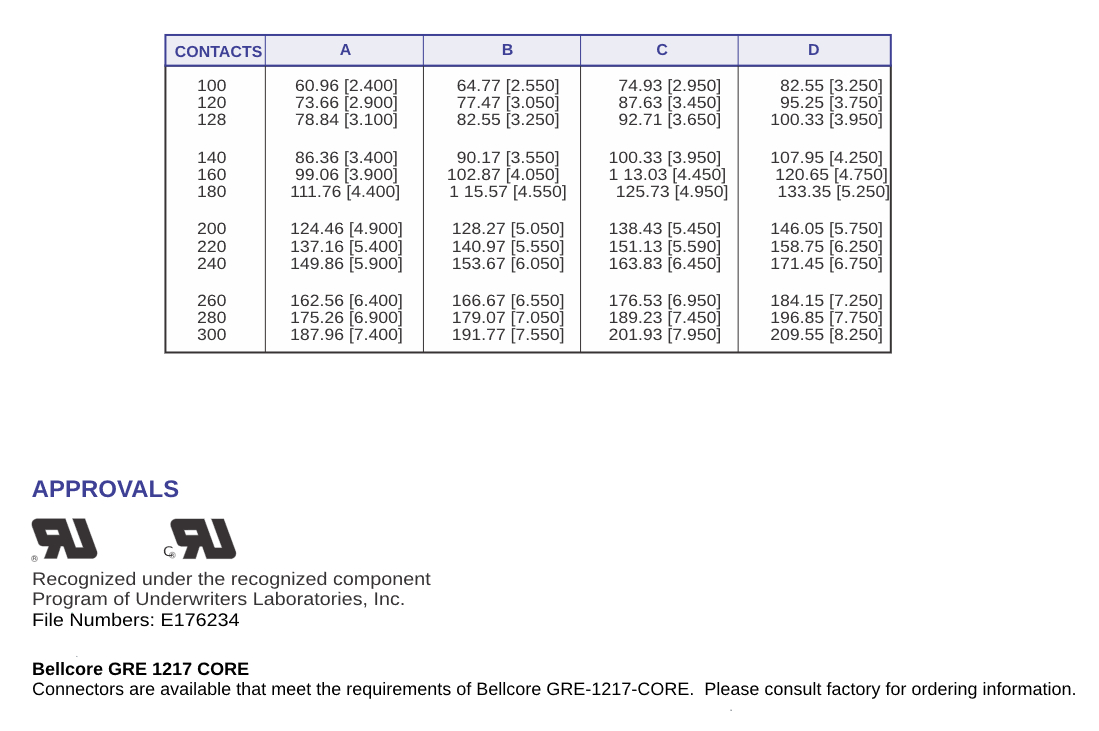

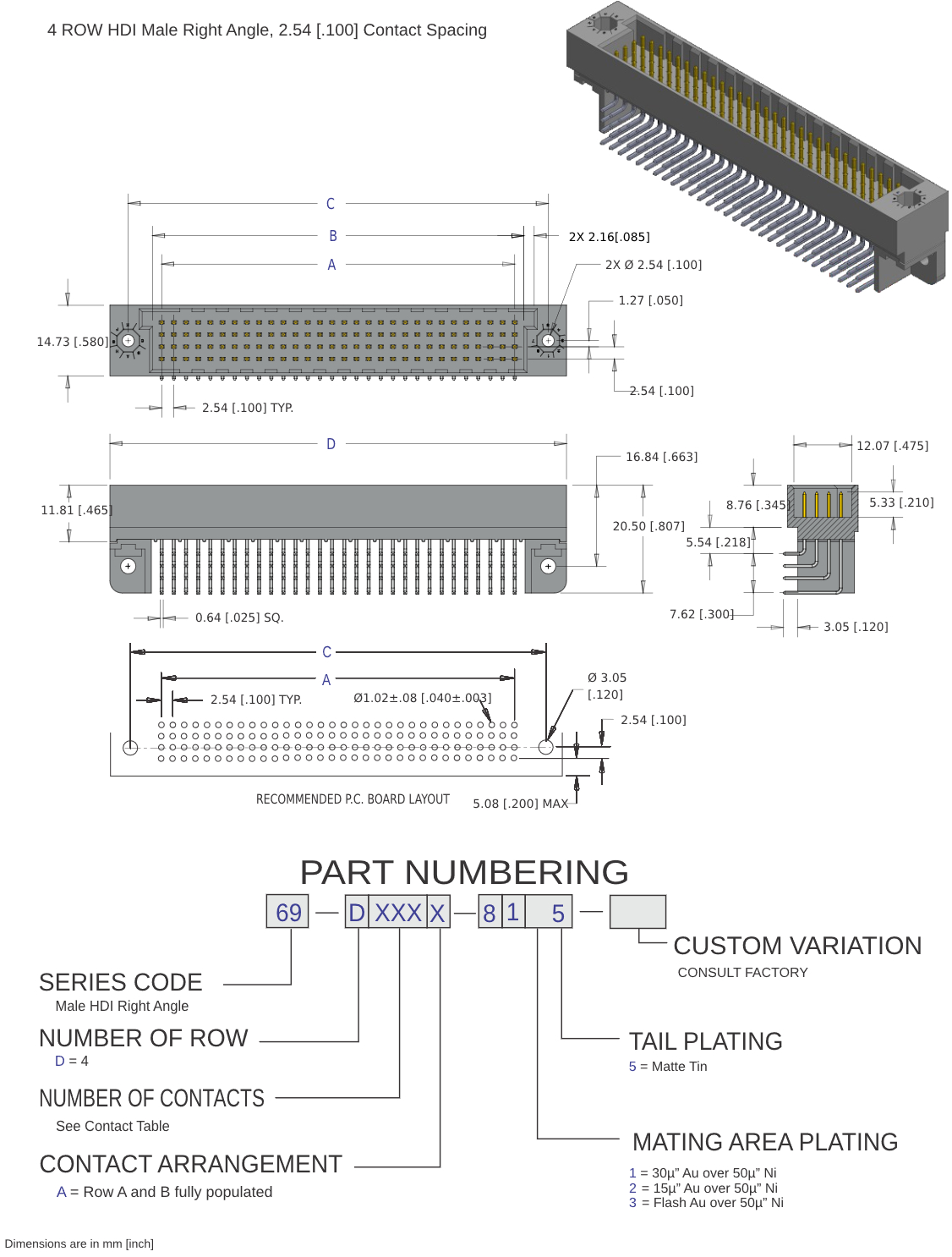

ECS 4 Row HDI Male Right Angle Connector
ECS 4 Row HDI Male Right Angle Connector
ECS 4 Row HDI Male Right Angle Connector
