91000 Series .025" Sq. Press Fit Contact



Specifications
Contact Material: Copper Alloy
Contact Plating: Gold or Tin over .000050” Nickel,
(See Contact Plating Options)
Current Rating: 3 amp at 30°C
Dielectric Withstand Voltage: 1800 V AC
Compliant Section Insertion Force:
40 lb max per contact
Compliant Section Withdrawal Force:
10 lbs min per contact
Hole Size Requirements:
Drilled Hole Dia.: .0453 .
F
.
± 001
Plating: .001 to .003 copper and
.0003 min Tin Lead.
inished Hole Diameter:
.040± 003
Recommended Board Thickness:
.093+
UL File Numbers: E146967 & E176234



Pressfit 1500 series card edge







Features

Available in selective gold plate


• Packages in reel form or in pre-cut
strips to your requirement.

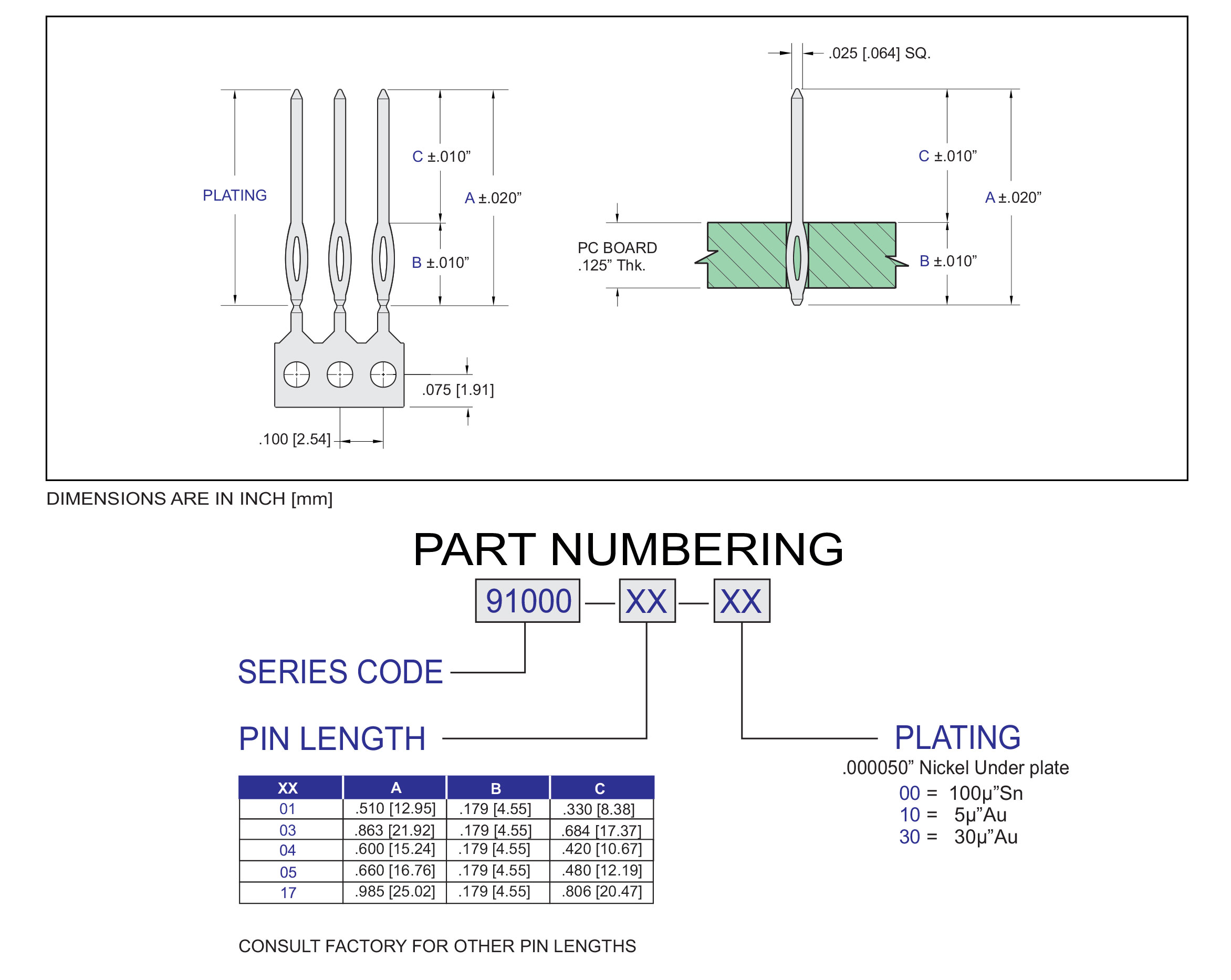

For drawings, technical data or samples,
contact E.C.S. at 714/828-8080


Note: Press in tool required. Consult
factory for press in tooling.
