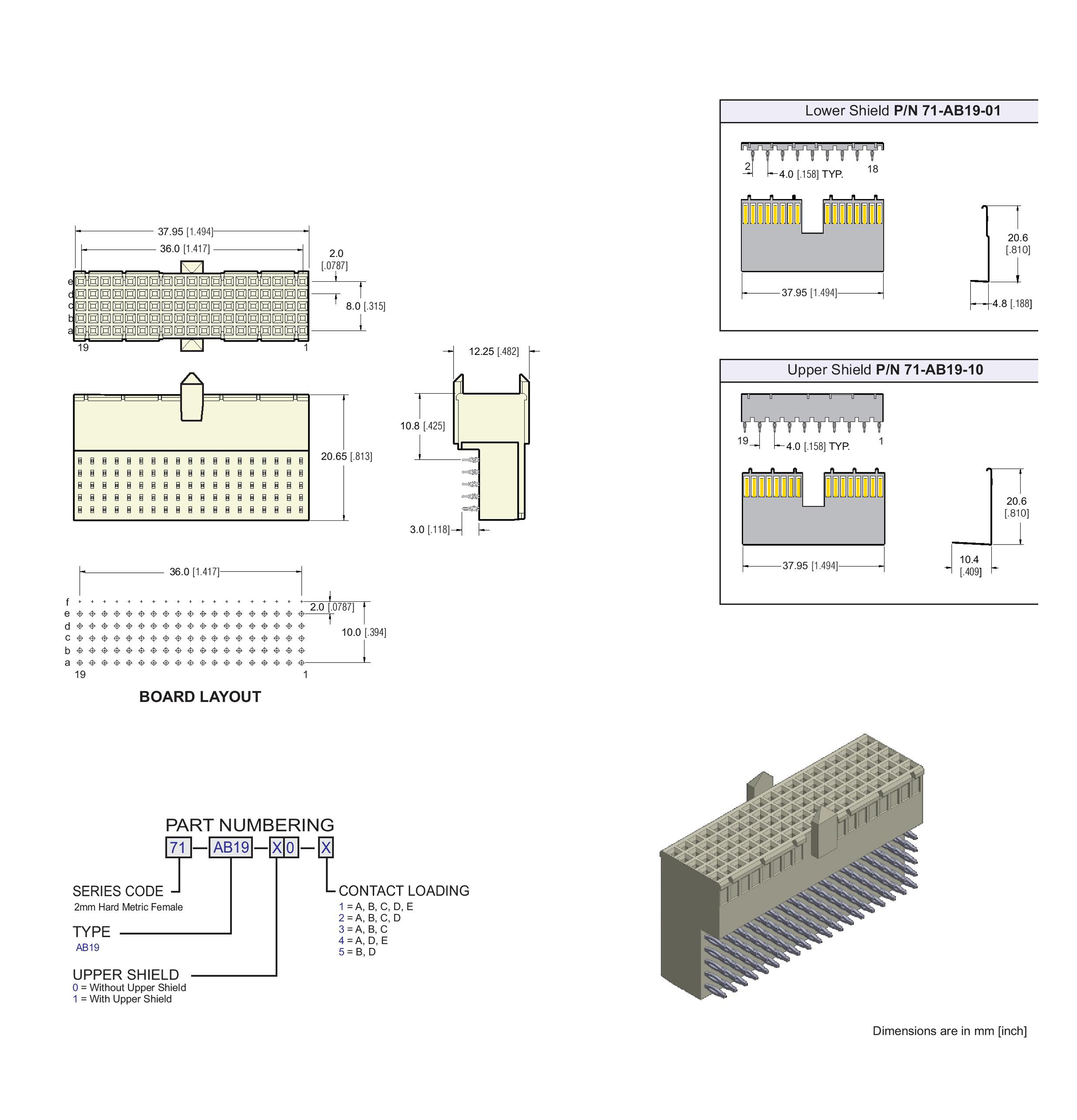

E-Z met™ 2mm Hard Metric Type AB-19 Receptacle, Right Angle






The E-Z met Type AB-19 connector provides 95 contacts as well as pre-alignment guides. These connectors are available either with or without integrated upper ground return shields. Lower ground return shields may be ordered separately.



SPECIFICATION

1. Insulator Material: PBT 30% Glass filled UL 94 V-O

2. Contact Material: Copper Alloy

3. Shield Material: Copper Alloy

4. Contact Plating:
Contact Area: Gold
Compliant Area: Matte Tin
Performance: Class 1: 500 cycles
Class 2: 250 cycles

5. Temperature Range: -55 C to +125 C

6. Contact Resistance: 20 M4 Ohm Max.

7. Insulation Resistance: 10 M Ohm Max.

8. Working Current: 1.5 ADC (Signal)

9. Test Voltage: AC 750 V Min.

10. Compliant Section:
Insertion Force: 100 N per contact Max.
Withdrawal Force: 20 N per contact Min.

11. Mating Force: .75 N per pin Max.

12. Withdrawal Force: .15 N per pin Max.

13. PCB Hole Size Requirements:
Drilled Hole Diameter: 0.7A 0.02mm
Finished Hole Diameter: 0.6A 0.05mm

14. Recommended PCB Thickness: 1.6mm Min.

15. IEC 61076-4-101 Standard

ECS 2mm Hard Metric Type AB19 Receptacle Right Angle
