91560 Series Compliant Pin .045 SQ.


ECS Catalog PDF Files Download

Specifications


Contact Material: Phosphor Bronze Alloy CA510
Contact Plating: All over Tin plate .000100/
.000200” thick over Nickel
(See Contact Plating Options).
Current Rating: 5 amps at 30°C
Dielectric Withstand Voltage:
1800 VAC
Recommended Board Thickness:
.093+
Insertion Force: 40 pounds max. Per contact.
Withdrawal Force: 10 pounds min. Per contact.
Hole Size Requirements:
Drilled Hole Diameter: .0773 +.001/ -.001.
Plating: .001 to .003 copper and .0001 to
.0008 solder.
Finished Hole Diameter: .
072 +.003/-.003.
UL File Numbers: E146967 & E176234



Features


• Available in gold plate
• Available in loose piece, or on .156”
carrier strip.


For drawings, technical data or samples,
contact E.C.S. at 714/750-9410

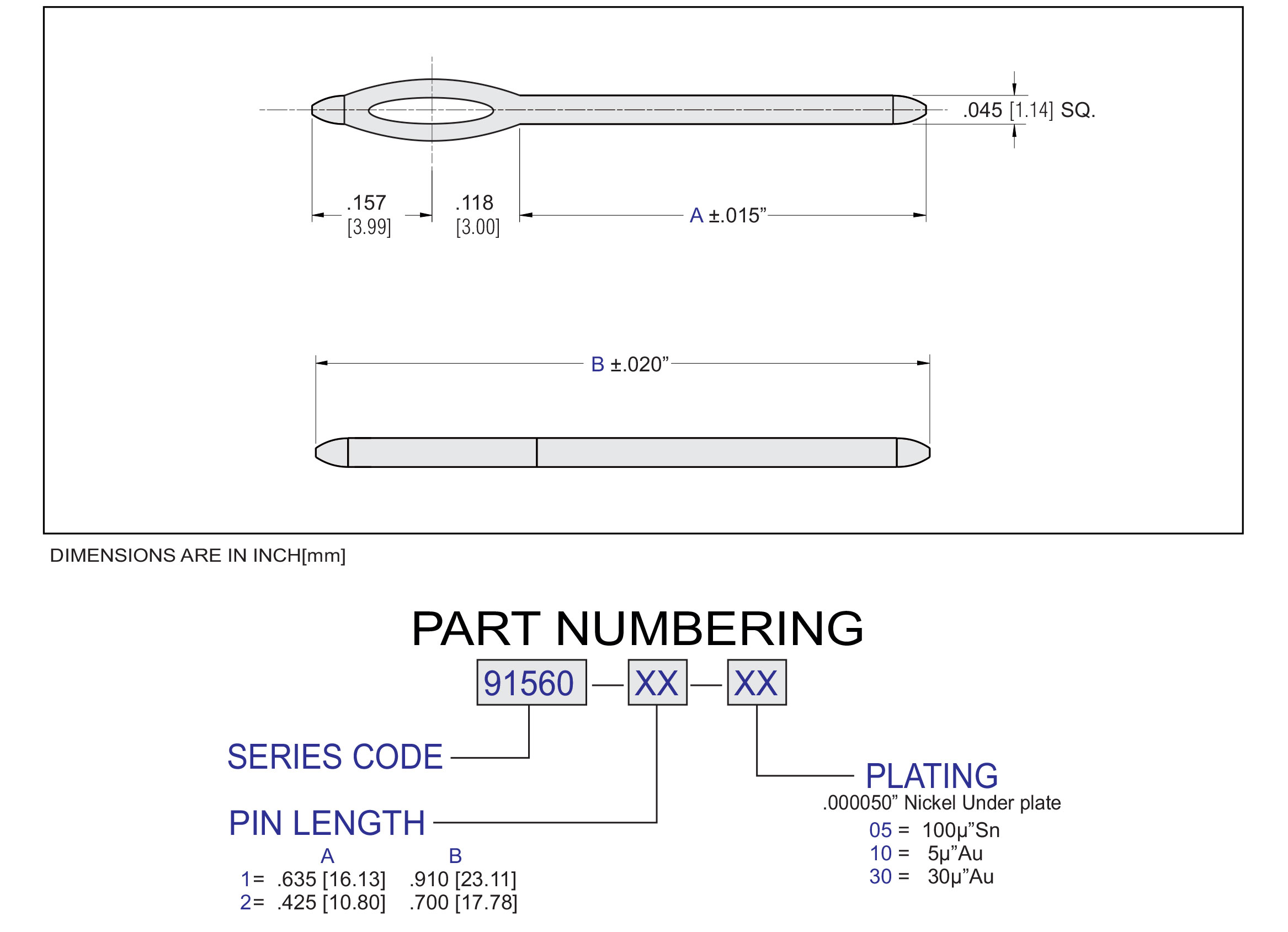

PIN LENGTH
91560 XX XX
SERIES CODE
PART NUMBERING
.045 [1.14] SQ.
.118
[3.00]
.157
[3.99]
A ±.015”
B ±.020”
WWW.ECSCONN.COM
91560 Series Compliant Pin
.045 SQ. CCS
Note: Press in tool required. Consult
factory for press in tooling.
